STEVAL-IKR002V4B

Active
Design Win

SPIRIT1 - low data rate transceiver - 868 MHz - DAUGHTER BOARD - integrated balun

Download databrief Order Direct
Overview
Sample & Buy
Solutions
Documentation
CAD Resources
Tools & Software
Quality & Reliability
Get Started
Partner products
Sales Briefcase

Product overview

Description

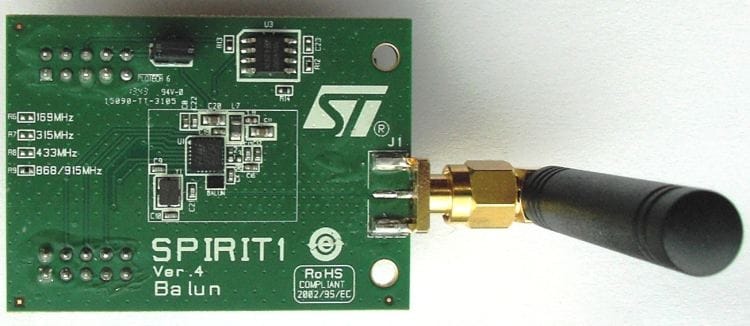

The STEVAL-IKR002V4B evaluation daughterboard is based on the SPIRIT1, a sub-GHz low power, low data rate transceiver suitable for ISM bands and wireless M-BUS. The board is equipped with external balun, matching and filter in a single BALF-SPI-01D3 device which optimizes size, RF performances and number of external RF components (from 16 SMD passive components to just 1).
  • All features

    • SPIRIT1 low power, sub-GHz transceiver in a standalone RF module tuned for the 868/915 MHz bands
    • External balun + matching + filter in a single component: BALF-SPI-01D3
    • Suitable for wireless M-BUS systems
    • Associated SPIRIT1 development kit includes documentation, firmware for STM32L and GUI
    • Modulation schemes: 2-FSK, GFSK, MSK, GMSK, OOK, and ASK
    • Air data rate from 1 to 500 kbps
    • Very low power consumption (9 mA RX and 21 mA TX at +11 dBm)
    • Excellent performance of receiver sensitivity (up to -120 dBm)
    • Low duty cycle RX/TX operation mode
    • Automatic acknowledgment, retransmission, and timeout protocol engine
    • AES 128-bit encryption co-processor
    • SPI interface for microcontroller
    • RoHS compliant
