Digital wall dimmer for halogen and low-consumption lamps

Download databrief

Order from our eStore and our distributors

Buy now
Overview
Tools & Software
Resources
Solutions
Quality & Reliability
Sales Briefcase
eDesignSuite
Get Started
Sample & Buy
Partner products

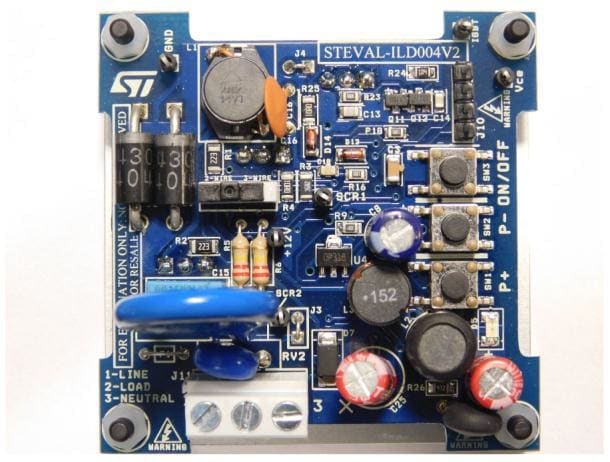

  • The STEVAL-ILD004V2 evaluation board represents an innovative and low cost power topology for light wall dimmers using two sensitive TS820-600FP SCRs and a single STGF10NC60KD IGBT to dim 100 - 240 V halogen lamps, SELV halogen lamps through magnetic or electronic transformers, and new CFL and LED dimmable lamps.

    Control of the board is achieved with STM8S103F2 microcontroller.
    In comparison with STEVAL-ILD004V1, this board introduces a buck SMPS (operated through the VIPer06XS) instead of a linear power supply, for compatibility acrtoss all dimmable LED and CFL lamps.

    Key Features

    • Flicker-free operation with paralleled lamps
    • Operation in 2- or 3-wire configuration
    • Leading-edge control
    • Operation at 110 V or 230 V line rms voltage and 50 Hz or 60 Hz line frequency
    • Dimmable power range:
      • 3 W to 600 W for 230 V rms line
      • 3 W to 300 W for 110 V rms line
      • higher power is possible with larger heatsink
    • Power efficiency @ 600 W - 230 V > 99%
    • Standby loss @ 230 V < 0.3 W
    • Short-circuit protection at startup
    • Enhanced interface with push-buttons; soft-start and soft-stop; memory of last setting
    • Compliance with EMC standards:
      • IEC 61000-4-5: criteria A for 2 kV surge
      • IEC 61000-4-4: criteria A for more than 4 kV
    • Filterless compliance with EN55015 for 600 W -230 V halogen lamp
    • RoHS compliant
