LCD panels backlight demonstration board based on the LED7706

Download databrief

Order from our eStore and our distributors

Buy now
Overview
Tools & Software
Resources
Solutions
Quality & Reliability
Sales Briefcase
eDesignSuite
Get Started
Sample & Buy
Partner products

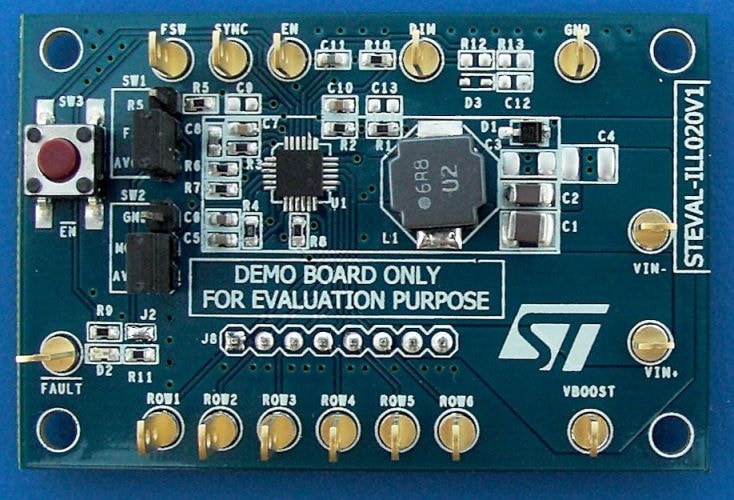

  • This demonstration board is based on the LED7706 and implements a high efficiency monolithic boost converter and six controlled current generators (rows) specifically designed to supply LEDs arrays used in the backlight of LCD panels.

    The device can manage an output voltage up to 36 V (i.e. ten white-LEDs per row).
    The generators can be externally programmed to sink up to 30 mA and can be dimmed via a PWM signal (1% dimming duty cycle at 20 kHz can be managed).
    The device allows to detect and manage the open and shorted LED faults and to let unused rows floating.
    Basic protections (output overvoltage, internal MOSFET overcurrent and thermal shutdown) are provided.

    Key Features

    • Features boost section4.5 V to 36 V input voltage rangeinternal power MOSFETinternal +5 V LDO for device supplyup to 36 V output voltageconstant frequency peak current-mode control200 kHz to 1 MHz adjustable switching frequencyexternal sync for multi-device applicationpulse-skip power saving mode at light loadprogrammable soft-startprogrammable OVP protectionsingle ceramic output capacitornon-latched thermal shutdown
    • RoHS compliant
    • Features backlight driver sectionsix rows with 30 mA maximum current capability (adjustable)pp to 10 white LEDs per rowrows disable optionless than 500 ns minimum dimming time (1% minimum dimming duty-cycle at 20 kHz dimming frequency)±2.0% current matching between rowsLED failure (open and short circuit) detection

Sample & Buy

Part Number
Core Product
Marketing Status
Budgetary Price (US$)*
Quantity
ECCN (US)
Country of Origin
Order from Distributors
Order from ST
STEVAL-ILL020V1 LED7706
Active
59.0 1 EAR99 ITALY Check Availability

Distributor availability ofSTEVAL-ILL020V1

Distributor Name
Region Stock Min. Order Third party link
DIGIKEY WORLDWIDE 12 1 Order Now
MOUSER WORLDWIDE 11 1 Order Now

Distributor reported inventory date: 2019-09-19

Distributor Name

DIGIKEY

Stock

12

Min.Order

1

Region

WORLDWIDE Order Now

MOUSER

Stock

11

Min.Order

1

Region

WORLDWIDE Order Now

Distributor reported inventory date: 2019-09-19

Buy now

STEVAL-ILL020V1

Core Product

LED7706

Marketing Status

Active

Unit Price (US$)

59.0*

Distributor availability ofSTEVAL-ILL020V1

Distributor Name
Region Stock Min. Order Third party link
DIGIKEY WORLDWIDE 12 1 Order Now
MOUSER WORLDWIDE 11 1 Order Now

Distributor reported inventory date: 2019-09-19

Distributor Name

DIGIKEY

Stock

12

Min.Order

1

Region

WORLDWIDE Order Now

MOUSER

Stock

11

Min.Order

1

Region

WORLDWIDE Order Now

Distributor reported inventory date: 2019-09-19

Unit Price (US$)

59

Quantity

1

ECCN (US)

EAR99

Country of Origin

ITALY

(*) Suggested Resale Price per unit (USD) for BUDGETARY USE ONLY. For quotes, prices in local currency, please contact your local ST Sales Office  or our Distributors
