Multi-channel LED driver with integrated boost controller for medium/large LCD panel backlight based on LED7708 and STM32F103C6T6 - daughter board

Download databrief

Order from our eStore and our distributors

Buy now
Overview
Tools & Software
Resources
Solutions
Quality & Reliability
Sales Briefcase
eDesignSuite
Get Started
Sample & Buy
Partner products

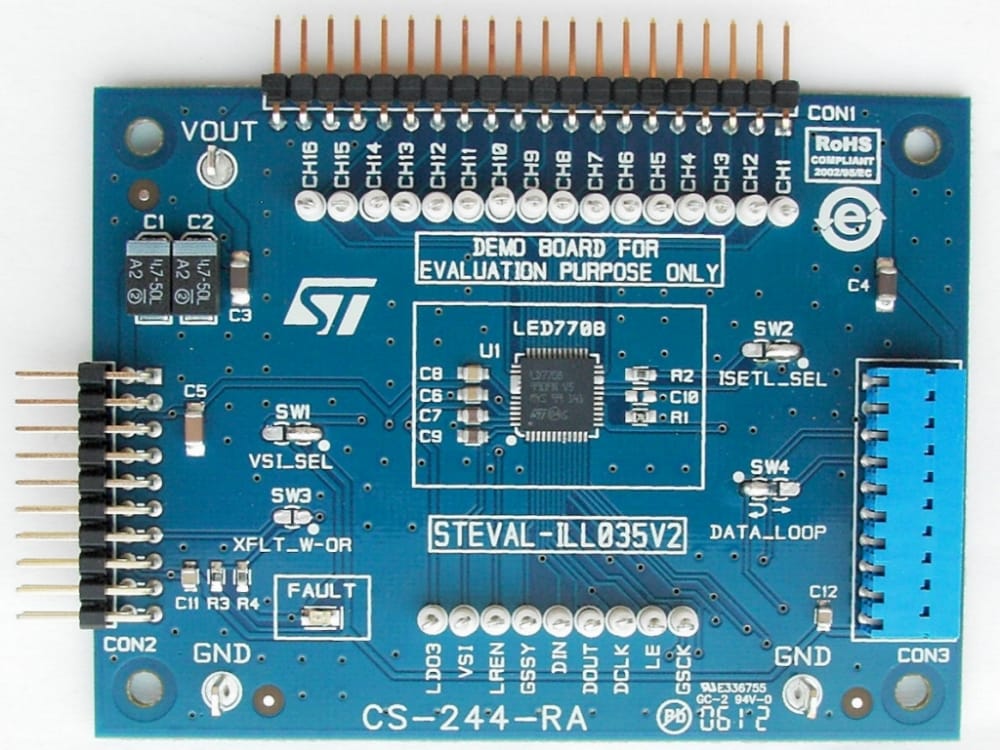

  • The STEVAL-ILL035V2 product evaluation board is an extension (daughterboard) of the STEVAL-ILL035V1 (motherboard) based on the LED7708 LED driver. It allows implementation of a daisy-chained configuration for applications requiring more than 16 channels.

    The LED7708 is configured as slave on the STEVAL-ILL035V2, and as master on the STEVAL-ILL035V1.
    The boost controller section is not used and the supply voltage for the LED strings is derived from the motherboard (STEVAL-ILL035V1, master) by extending the output voltage optimization through dedicated hand-shake signals. Additional daughterboards can be connected to a single motherboard to increase the number of channels. The brightness control of the LED strings and the fault management options are identical to the ones available for the STEVAL-ILL035V1 evaluation board. The evaluation board is intended as a solution for medium/large LCD panel backlight drivers, but is suitable for any application involving several LEDs arranged is strings (e.g. advertisement panels, signs, gaming, etc.).

    Key Features

    • Wide DC input voltage: 10 V - 28 V
    • 16-channels with up to 85 mA/channel current capability and independent PWM brightness control
    • Up to 15 white LEDs per channel
    • Embedded open-channel and LED short-circuit faults management
    • Expansion connector to cascade other STEVAL-ILL035V2 evaluation boards
    • RoHS compliant

Sample & Buy

Part Number
Core Product
Marketing Status
Budgetary Price (US$)*
Quantity
ECCN (US)
Country of Origin
Order from Distributors
Order from ST
STEVAL-ILL035V2 LED7708; STM32F103C6T6
Active
69.0 1 EAR99 ITALY Check Availability

Distributor availability ofSTEVAL-ILL035V2

Distributor Name
Region Stock Min. Order Third party link
P&S ASIA/PACIFIC 1 1 Order Now
MOUSER WORLDWIDE 3 1 Order Now

Distributor reported inventory date: 2019-11-18

Distributor Name

P&S

Stock

1

Min.Order

1

Region

ASIA/PACIFIC Order Now

MOUSER

Stock

3

Min.Order

1

Region

WORLDWIDE Order Now

Distributor reported inventory date: 2019-11-18

Buy now

STEVAL-ILL035V2

Core Product

LED7708; STM32F103C6T6

Marketing Status

Active

Unit Price (US$)

69.0*

Distributor availability ofSTEVAL-ILL035V2

Distributor Name
Region Stock Min. Order Third party link
P&S ASIA/PACIFIC 1 1 Order Now
MOUSER WORLDWIDE 3 1 Order Now

Distributor reported inventory date: 2019-11-18

Distributor Name

P&S

Stock

1

Min.Order

1

Region

ASIA/PACIFIC Order Now

MOUSER

Stock

3

Min.Order

1

Region

WORLDWIDE Order Now

Distributor reported inventory date: 2019-11-18

Unit Price (US$)

69

Quantity

1

ECCN (US)

EAR99

Country of Origin

ITALY

(*) Suggested Resale Price per unit (USD) for BUDGETARY USE ONLY. For quotes, prices in local currency, please contact your local ST Sales Office  or our Distributors
