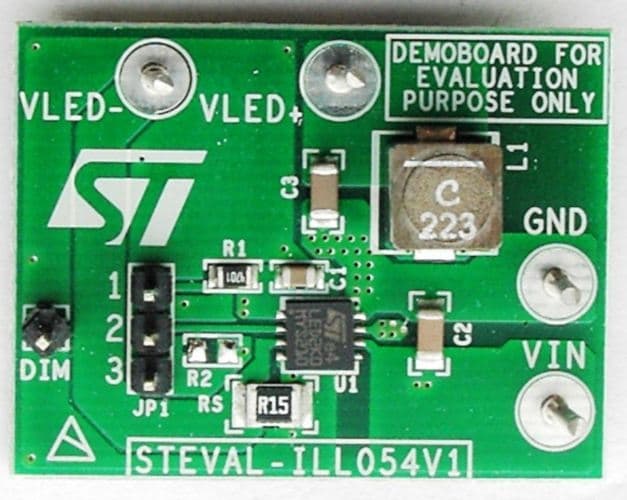

  • The purpose of the STEVAL-ILL054V1 evaluation board is aid in the evaluation of the LED2001, an 850 kHz fixed switching frequency monolithic step-down DC-DC converter. The LED2001 is designed to operate as a precise constant current source with an adjustable current capability up to 4 A DC.

    The embedded PWM dimming circuitry features LED brightness control. The regulated output current is set by connecting a sensing resistor to the feedback pin.
    The size of the overall application is minimized thanks to the high switching frequency and ceramic output capacitor compatibility.
    The device is fully protected against overheating, overcurrent and output short-circuit.

    Key Features

    • 3.0 V to 18 V operating input voltage range
    • 850 kHz fixed switching frequency
    • 100 mV typical current sense voltage drop
    • PWM dimming
    • ±7% output current accuracy
    • Synchronous rectification
    • Internal current limiting
    • Thermal shutdown
    • RoHS compliant

Recommended for you

00 Files selected for download

Technical Documentation

    • Description Version Size Action
      DB1892
      4 A HB LED driver with dimming function based on the LED2001 in a QFN package
      2.0
      224.51 KB
      PDF
      DB1892

      4 A HB LED driver with dimming function based on the LED2001 in a QFN package

Hardware Resources

    • Description Version Size Action
      STEVAL-ILL054V1 gerber files 1.0
      509.19 KB
      ZIP

      STEVAL-ILL054V1 gerber files

    • Description Version Size Action
      STEVAL-ILL054V1 BOM 1.0
      7.87 KB
      PDF

      STEVAL-ILL054V1 BOM

    • Description Version Size Action
      STEVAL-ILL054V1 schematics 2.0
      42.27 KB
      PDF

      STEVAL-ILL054V1 schematics
