STEVAL-ISA100V1

Active
Design Win
Save to myST

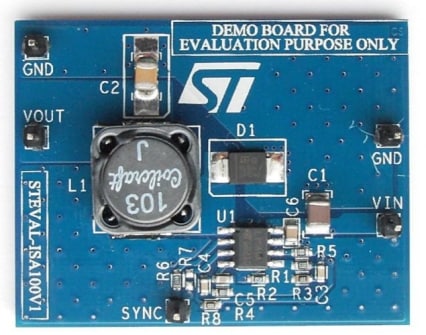

3 A step-down switching demonstration board based on the L7986A in HSOP8 package

Download databrief
Order Direct

Product overview

Description

The STEVAL-ISA100V1 demonstration board is a step-down switching power supply based on the L7986A in HSOP8 package.

The L7986A is a step-down switching regulator with a 3.7 A (minimum) current limited embedded power MOSFET, so it is able to deliver up to 3 A current to the load depending on the application conditions.

The input voltage can range from 4.5 V to 38 V, while the output voltage can be set starting from 0.6 V to VIN.

Requiring a minimum set of external components, the device includes an internal 250 kHz switching frequency oscillator that can be externally adjusted up to 1 MHz.

  • All features

    • 3 A DC output current
    • 4.5 V to 38 V input voltage
    • Output voltage adjustable from 0.6 V
    • 250 kHz switching frequency, programmable up to 1 MHz
    • Internal soft-start and enable
    • Low dropout operation: 100% duty cycle
    • Voltage feed-forward
    • Zero load current operation
    • Overcurrent and thermal protection
    • RoHS compliant
    Read more Read less
