STEVAL-ISA156V1

Active

38 V, 2 A synchronous step-down switching regulator evaluation board based on the L6986

Download databrief Order Direct
Overview
Sample & Buy
Solutions
Documentation
CAD Resources
Tools & Software
Quality & Reliability
eDesignSuite
Get Started
Partner products
Sales Briefcase

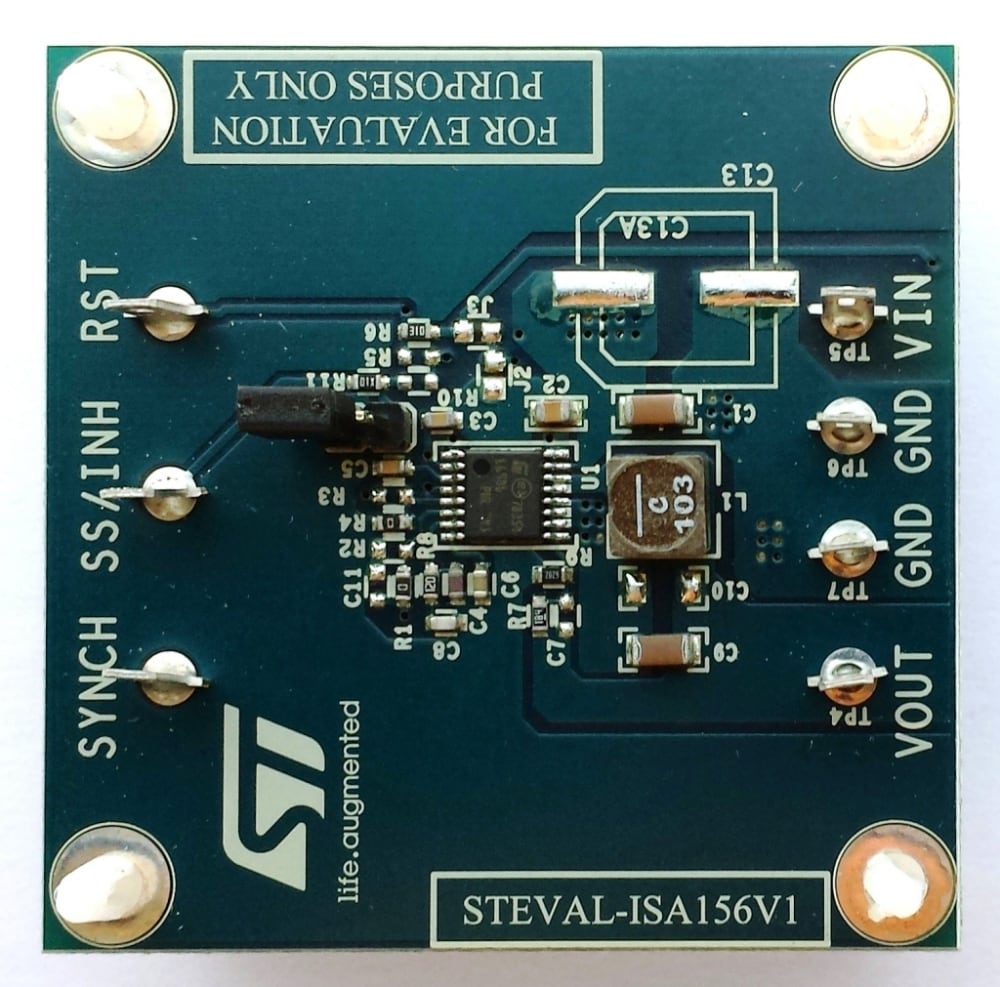

  • The STEVAL-ISA156V1 is a product evaluation board based on ST's L6986, a 38 V, 2 A synchronous step-down switching regulator with 30 μA quiescent current. It can be used for 12 V and 24 V buses, programmable logic controllers (PLCs), decentralized intelligent nodes & sensors and low noise applications (LNM).

    Key Features

    • 4 V to 38 V operating input voltage
    • Low consumption mode or low noise mode
    • 30 μA IQ at light load (LCM VOUT= 3.3 V)
    • 5 μA IQ-SHTDWN
    • Adjustable fSW (250 kHz - 2 MHz)
    • Output voltage adjustable from 0.85 V to VIN
    • Embedded output voltage supervisor
    • Synchronization
    • Adjustable soft-start time
    • Internal current limiting
    • Overvoltage protection
    • Output voltage sequencing
    • Peak current mode architecture
    • RDS(on) HS= 180 mΩ, RDS(on) LS= 110 mΩ
    • Thermal shutdown

Recommended for you

Quality and Reliability

Part Number Marketing Status Package Grade RoHS Compliance Grade WEEE Compliant Material Declaration**
STEVAL-ISA156V1
Active
CARD Industrial Ecopack2 -

STEVAL-ISA156V1

Package:

CARD

Material Declaration**:

Marketing Status

Active

Package

CARD

Grade

Industrial

RoHS Compliance Grade

Ecopack2

(**) The Material Declaration forms available on st.com may be generic documents based on the most commonly used package within a package family. For this reason, they may not be 100% accurate for a specific device. Please contact our sales support for information on specific devices.

Sample & Buy

Part Number
Order from Distributors
Order from ST
Core Product
Marketing Status
Supplier
ECCN (US)
ECCN (EU)
Country of Origin
Board production status
Budgetary Price (US$)*/Qty
STEVAL-ISA156V1 Available at 3 distributors

Distributor availability ofSTEVAL-ISA156V1

Distributor Name
Region Stock Min. Order Third party link
DIGIKEY WORLDWIDE 1 1 Order Now
MOUSER WORLDWIDE 21 1 Order Now
Farnell Element14 EUROPE 166 1 Order Now

Distributor reported inventory date: 2020-11-24

Distributor Name

DIGIKEY

Stock

1

Min.Order

1

Region

WORLDWIDE Order Now

MOUSER

Stock

21

Min.Order

1

Region

WORLDWIDE Order Now

Farnell Element14

Stock

166

Min.Order

1

Region

EUROPE Order Now

Distributor reported inventory date: 2020-11-24

Buy Direct L6986
Active
ST EAR99 NEC ITALY - 49.0 / 1

STEVAL-ISA156V1

Core Product

L6986

Marketing Status

Active

Budgetary Price (US$)*/Qty

49.0 / 1

Distributor availability ofSTEVAL-ISA156V1

Distributor Name
Region Stock Min. Order Third party link
DIGIKEY WORLDWIDE 1 1 Order Now
MOUSER WORLDWIDE 21 1 Order Now
Farnell Element14 EUROPE 166 1 Order Now

Distributor reported inventory date: 2020-11-24

Distributor Name

DIGIKEY

Stock

1

Min.Order

1

Region

WORLDWIDE Order Now

MOUSER

Stock

21

Min.Order

1

Region

WORLDWIDE Order Now

Farnell Element14

Stock

166

Min.Order

1

Region

EUROPE Order Now

Distributor reported inventory date: 2020-11-24

Supplier

ST

ECCN (US)

EAR99

ECCN (EU)

NEC

Budgetary Price (US$)* / Qty

49.0 / 1

Country of Origin

ITALY

Board production status

-

(*) Suggested Resale Price per unit (USD) for BUDGETARY USE ONLY. For quotes, prices in local currency, please contact your local ST Sales Office  or our Distributors
