STEVAL-ISA161V1

NRND

Evaluation board for the SEA01 constant voltage and current controller with online digital trimming

Download databrief
Overview
Tools & Software
Resources
Solutions
Quality & Reliability
Sales Briefcase
eDesignSuite
Get Started
Sample & Buy
Partner products

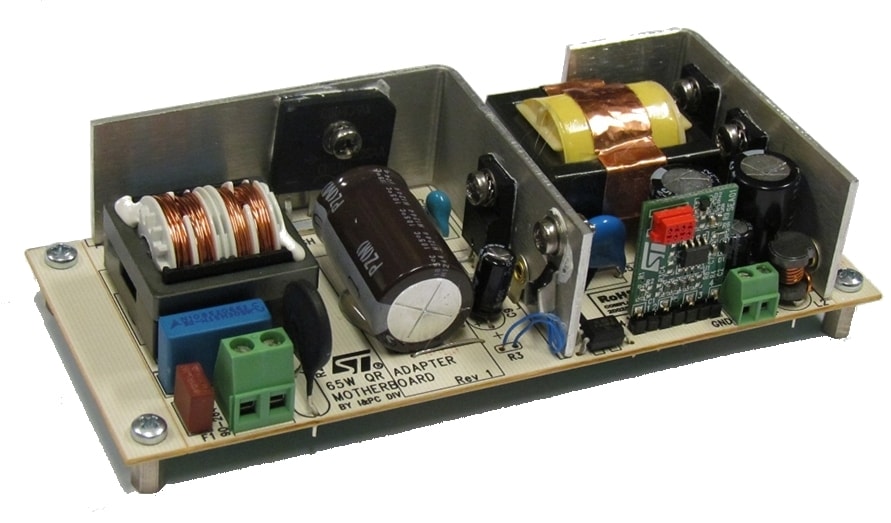

  • The STEVAL-ISA161V1 is an evaluation board to test the performance of the SEA01 constant voltage and current controller with online digital trimming from STMicroelectronics. The board implements a 65 W adapter, targeting applications such as power supplies for high-end portable computers. The board uses the SEA01 as secondary side CV/CC controller, allowing the application to satisfy very precise output voltage and current regulations thanks to the digital trimming technique employed. The primary side PWM controller is the L6566B. This device drives a TM flyback topology, the best fit for this type of application.

    The SEA01 is mounted on a small daughterboard that includes a connector to communicate, via I²C protocol, with an external trimming tool. This evaluation board can therefore be useful also as a means to test the benefits of digital trimming in a real application. The SEA01, housed in an SO8 package, is a CV/CC controller which includes 2 transconductance op-amps and 2 voltage references, digitally trimmable using an I²C interface. ST also offers an advanced trimming board (STEVAL-PCC019V1) that allows users to perform all the trimming operations (including automatic trimming) using a standard Windows®-based PC.

    Key Features

    • Universal input mains range: 90 to 264 Vac, 45 to 66 Hz
    • 65 W continuous output power
    • Precise output levels:
      • CV: 19 V ± 0.1%
      • CC: 3.75 A ± 1.67%
    • No load consumption < 100 mW @ 230 Vac
    • Average efficiency > 89%
    • Full set of protection features
    • EMI: in accordance with EN55022 - class B
    • Safety: in accordance with EN60950
    • PCB: CEM-1, single side 35 µm
    • Board size: 58 x 121 mm, 25 mm height
    • RoHS compliant
