STEVAL-MIC003V1

Active

Microphone coupon board based on the IMP34DT05 digital MEMS

Download databrief

Order from our distributors

Check availability
Overview
Tools & Software
Resources
Solutions
Quality & Reliability
Sales Briefcase
eDesignSuite
Get Started
Sample & Buy
Partner products

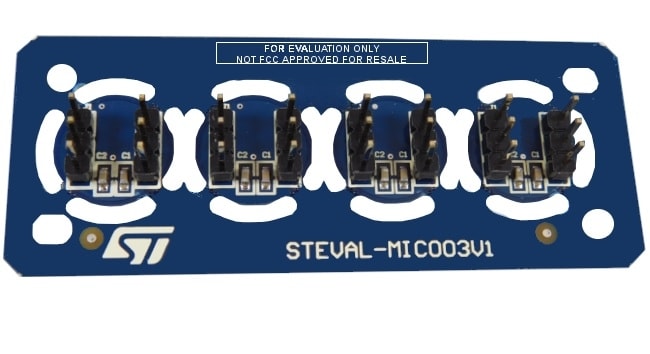

  • The STEVAL-MIC003V1 daughterboard is designed to be used in conjunction with the X-NUCLEO-CCA02M1 expansion board; it is able to export the four additional PDMs for any user application requirement (NBW algorithm detection).

    Key Features

    • 4 x IMP34DT05 top port digital MEMS microphones
    • Daughterboard to be used with X-NUCLEO-CCA02M1
    • Vsupply from 1.6 to 3.6 V
    • 122.5 dBSPL acoustic overload point
    • Omnidirectional sensitivity
    • PDM single-bit output
    • 64 dB of SNR
    • Sensitivity -26 dBFS ±3 dB
    • RoHS compliant
