Microphone coupon board based on the MP23ABS1 analog MEMS

Download databrief

Order from our eStore and our distributors

Buy now
Overview
Tools & Software
Resources
Solutions
Quality & Reliability
Sales Briefcase
eDesignSuite
Get Started
Sample & Buy
Partner products

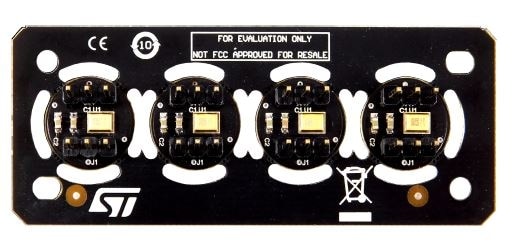

  • The STEVAL-MIC004V1 is a daughterboard containing 4 MP23ABS1 analog MEMS microphones. The coupon concept allows easy performance testing of ST MEMS microphones. It is possible to detach the single PCBs hosting each microphone.

    Key Features

    • 4 x MP23ABS1 bottom port analog MEMS microphones
    • Vsupply from 1.52 to 3.6 V
    • 130 dBSPL acoustic overload point
    • Omnidirectional sensitivity
    • Current consumption: 120 µA
    • 64 dB of SNR
    • Sensitivity -38 dBV ±1 dB
    • WEEE compliant
    • RoHS compliant
