STEVAL-MIC005V1

Save to MyST

Microphone coupon board based on the MP23DB02MM digital MEMS microphone

Order Direct

Overview

Online design

Sample & Buy

Solutions

Documentation

CAD Resources

Tools & Software

Quality & Reliability

Partner products

Sales Briefcase

Show only products supplied by ST

Product overview

Description

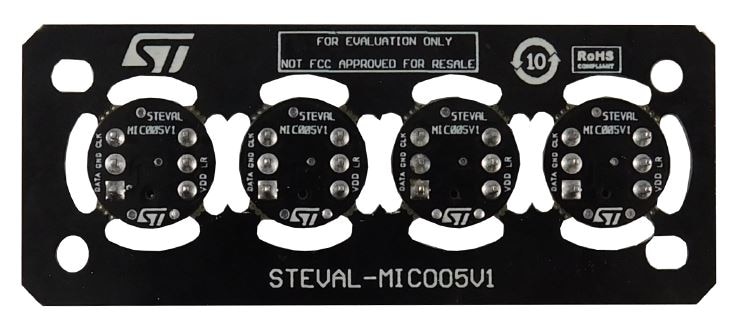

The STEVAL-MIC005V1 is a daughterboard containing 4 MP23DB02MM digital MEMS microphones.

The STEVAL-MIC005V1 can be used with X-NUCLEO-CCA02M2.
The coupon concept allows easy performance testing of ST MEMS microphones. It is possible to detach the single PCBs hosting each microphone.

All features
4 x MP23DB02MM bottom port digital MEMS microphones

Multi performance mode

Vsupply from 1.6 to 3.6 V

122 dBSPL acoustic overload point

PDM single-bit output

64 dB of SNR in low power mode

Sensitivity -26 dBFs ±1 dB (in low power and performance mode)

RoHS and WEEE compliant
Read more Read less
