Product overview
Description

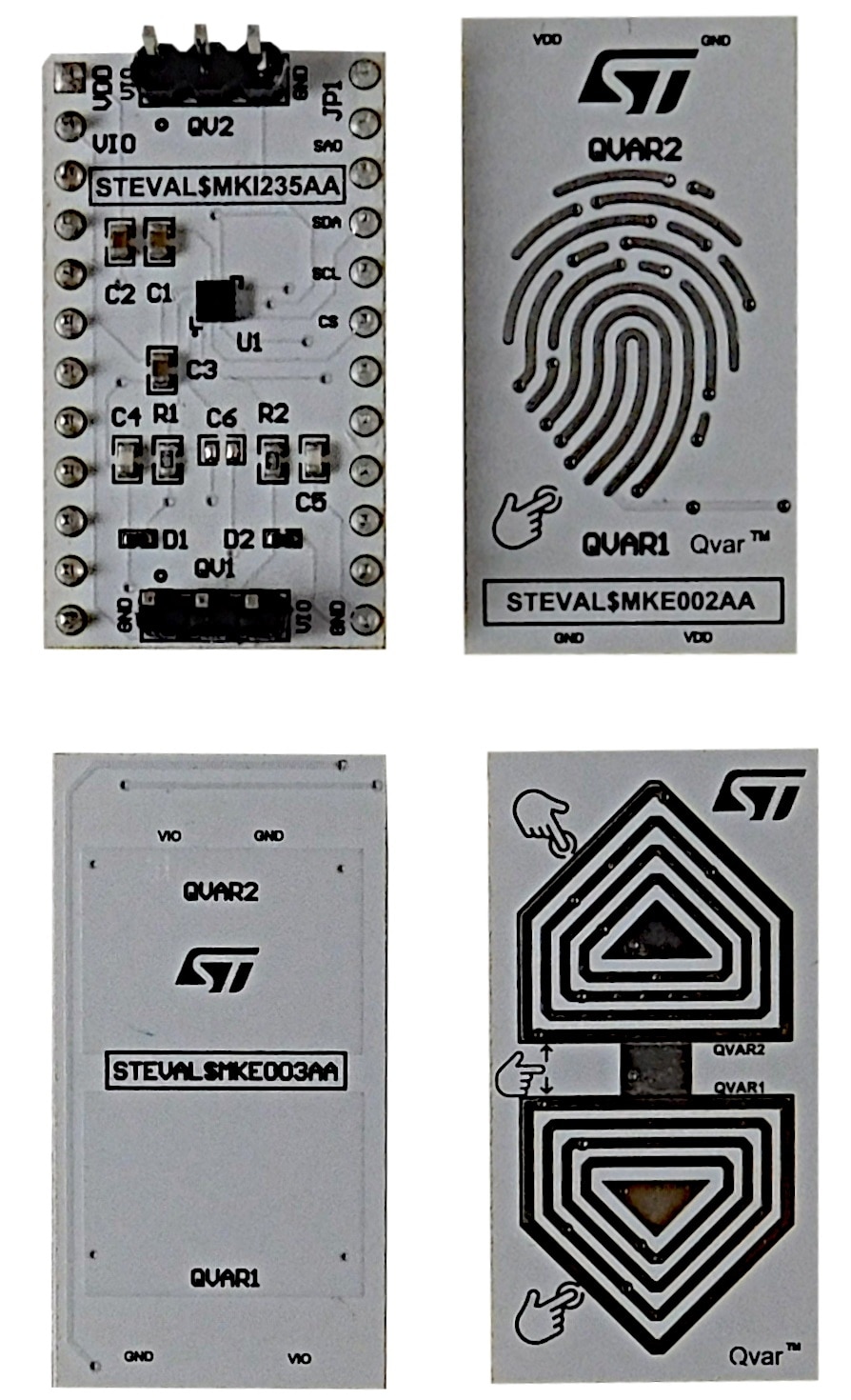

The STEVAL-MKI235KA evaluation kit is based on the LIS2DUXS12 inertial module with a Qvar electrostatic sensor and three different electrodes (swipe finger and generic) to make it compatible with the STEVAL-MKI109V3.
The kit provides the complete LIS2DUXS12 pinout and comes ready-to-use with the required decoupling capacitors on the VDD power supply line.
The STEVAL-MKE00xAA can be plugged into the STEVAL-MKI235A board.
This adapter is supported by the STEVAL-MKI109V3 mother board, which includes a high performance 32-bit microcontroller functioning as a bridge between the sensor and a PC, on which it is possible to use the downloadable graphical user interface (Unico-GUI), or dedicated software routines for customized applications.
It is also possible to plug the board into an X-NUCLEO-IKS01A3 expansion board.
-
All features
- User friendly LIS2DUXS12 board
- Complete LIS2DUXS12 pinout for a standard DIL 24 socket
- Fully compatible with the STEVAL-MKI109V3 motherboard
- RoHS compliant
Recommended for you
All resources
| Resource title | Version | Latest update |
|---|
Board Manufacturing Specifications (1)
| Resource title | Version | Latest update | ||
|---|---|---|---|---|
| ZIP | 1.0 | 20 Jan 2023 | 20 Jan 2023 |
Bill of Materials (1)
| Resource title | Version | Latest update | ||
|---|---|---|---|---|
| 1.0 | 20 Jan 2023 | 20 Jan 2023 |
Schematic Pack (1)
| Resource title | Version | Latest update | ||
|---|---|---|---|---|
| 1.0 | 20 Jan 2023 | 20 Jan 2023 |
Quality and Reliability
| Part Number | Marketing Status | Package | Grade | RoHS Compliance Grade | WEEE Compliant | Material Declaration** |
|---|---|---|---|---|---|---|
| STEVAL-MKI235KA | Active | CARD | Industrial | Ecopack2 | Yes | |
STEVAL-MKI235KA
Package:
CARDMaterial Declaration**:
(**) The Material Declaration forms available on st.com may be generic documents based on the most commonly used package within a package family. For this reason, they may not be 100% accurate for a specific device. Please contact our sales support for information on specific devices.
Sample & Buy
| Part Number | Marketing Status | Budgetary Price (US$)*/Qty | Order from ST | Order from distributors | Package | Packing Type | RoHS | Country of Origin | ECCN (US) | ECCN (EU) | Supplier | Core Product | Supplier | Core Product | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| STEVAL-MKI235KA | | | distributors No availability of distributors reported, please contact our sales office | ITALY | EAR99 | NEC | ST | LIS2DUXS12TR | ST | LIS2DUXS12TR |
STEVAL-MKI235KA Active
(*) Suggested Resale Price (USD) per defined quantity for BUDGETARY USE ONLY. For quotes, prices in local currency, please contact your local ST Sales Office or our Distributors
