STEVAL-MKSBOX1V1

Active

SensorTile.box wireless multi sensor development kit with user friendly app for IoT and wearable sensor applications

Download databrief Order Direct
Overview
Online design
Sample & Buy
Solutions
Documentation
CAD Resources
Tools & Software
Quality & Reliability
Partner products
Sales Briefcase

Product overview

Description

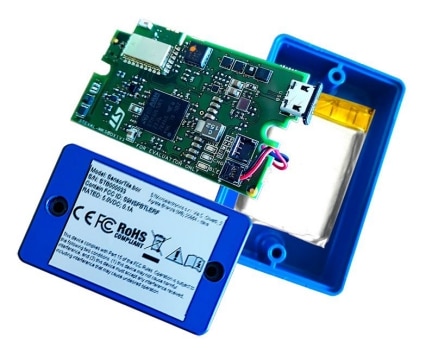

The STEVAL-MKSBOX1V1 (SensorTile.box) is a ready-to-use box kit with wireless IoT and wearable sensor platform to help you use and develop apps based on remote motion and environmental sensor data, regardless of your level of expertise. The SensorTile.box board fits into a small plastic box with a long-life rechargeable battery, and the ST BLE Sensor app on your smartphone connects via Bluetooth to the board and allows you to immediately begin using the wide range of default IoT and wearable sensor applications.
In Expert Mode, you can build customs apps from your selection of SensorTile.box sensors, operating parameters, data and output types, and special functions and algorithms available. This multi sensor kit therefore allows you to design wireless IoT and wearable sensor applications quickly and easily, without performing any programming.
SensorTile.box includes a firmware programming and debugging interface that allows professional developers to engage in more complex firmware code development using the STM32 Open Development Environment (STM32 ODE), which includes a sensing AI function pack with neural network libraries.
  • All features

    • Easy-to-use app with immediate functionality for the following motion and environmental sensor applications:
      • Pedometer optimized for belt positioning
      • Baby crying detection with Cloud AI learning
      • Barometer / environmental monitoring
      • Vehicle / goods tracking
      • Vibration monitoring
      • Compass and inclinometer
      • Sensor data logger
    • Expert Mode with additional sensor app parameter settings
    • Compact board with the following high precision sensors:
      • Digital temperature sensor (STTS751)
      • 6-axis inertial measurement unit (LSM6DSOX)
      • 3-axis accelerometers (LIS2DW12 and LIS3DHH)
      • 3-axis magnetometer (LIS2MDL)
      • Altimeter / pressure sensor (LPS22HH)
      • Microphone / audio sensor (MP23ABS1)
      • Humidity sensor (HTS221)
    • Ultra-low-power ARM Cortex-M4 microcontroller with DSP and FPU (STM32L4R9)
    • Bluetooth application processor v5.2 (BlueNRG-M2) which replaces the SPBTLE-1S Bluetooth Smart connectivity v4.2 module of the board previous batches
    • Programming and debugging interface for professional firmware development

You might also like...

Get Started with the SensorTile.box
by Dogan Ibrahim | Publisher : Elektor Published : 2020

All tools & software

    • Part number
      Status
      Description
      Type
      Supplier

      SensorTile.box

      Active

      SensorTile.box is an evaluation kit IoT node made up of an electronics board, a lithium rechargeble battery, a plastic housing and APP.

      Components and Modules FAE Technology
      SensorTile.box

      Description:

      SensorTile.box is an evaluation kit IoT node made up of an electronics board, a lithium rechargeble battery, a plastic housing and APP.
    • Part number
      Status
      Description
      Type
      Supplier

      FAE Engineering Services

      Active

      Engineering services on the SensorTile.box surch as Plastic housing, HW and SW/App customizations and boards Manufacturing.

      Engineering Services FAE Technology
      FAE Engineering Services

      Description:

      Engineering services on the SensorTile.box surch as Plastic housing, HW and SW/App customizations and boards Manufacturing.
    • Part number
      Status
      Description
      Type
      Supplier

      STSW-MKSBOX1_BL

      Active

      SensorTile.box firmware OTA function restore

      Evaluation Tool Software ST
      STSW-MKSBOX1_BL

      Description:

      SensorTile.box firmware OTA function restore
    • Part number
      Status
      Description
      Type
      Supplier

      FP-AI-CTXAWARE1

      Active

      STM32Cube function pack for ultra-low power context awareness with distributed artificial intelligence (AI): acoustic analysis with NN on MCU and motion analysis with ML on IMU

      STM32 ODE Function Pack SW ST
      FP-AI-CTXAWARE1

      Description:

      STM32Cube function pack for ultra-low power context awareness with distributed artificial intelligence (AI): acoustic analysis with NN on MCU and motion analysis with ML on IMU

      FP-AI-SENSING1

      Active

      STM32Cube function pack for ultra-low power IoT node with artificial intelligence (AI) application based on audio and motion sensing

      STM32 ODE Function Pack SW ST
      FP-AI-SENSING1

      Description:

      STM32Cube function pack for ultra-low power IoT node with artificial intelligence (AI) application based on audio and motion sensing

      FP-ATR-BLE1

      Active

      STM32Cube function pack for asset tracking using BLE connectivity for SensorTile.box wireless multi sensor development kit

      STM32 ODE Function Pack SW ST
      FP-ATR-BLE1

      Description:

      STM32Cube function pack for asset tracking using BLE connectivity for SensorTile.box wireless multi sensor development kit

      FP-SNS-ALLMEMS1

      Active

      STM32 ODE function pack for IoT node with BLE connectivity, digital microphone, environmental and motion sensors

      STM32 ODE Function Pack SW ST
      FP-SNS-ALLMEMS1

      Description:

      STM32 ODE function pack for IoT node with BLE connectivity, digital microphone, environmental and motion sensors

      FP-SNS-ALLMEMS2

      Active

      STM32Cube function pack for ultra-low power IoT node with BLE connectivity, digital microphone, environmental and motion sensors

      STM32 ODE Function Pack SW ST
      FP-SNS-ALLMEMS2

      Description:

      STM32Cube function pack for ultra-low power IoT node with BLE connectivity, digital microphone, environmental and motion sensors
