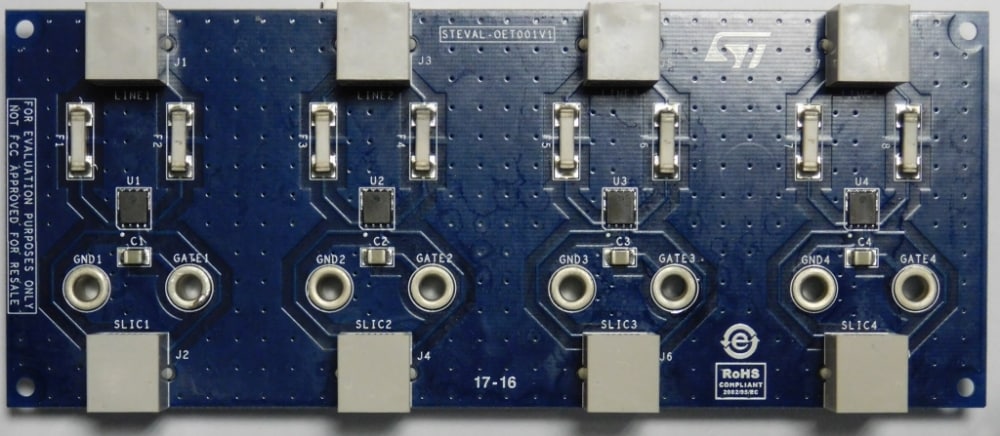

  • The STEVAL-OET001V1 board is designed to validate lightning protection for SLIC transceivers. The maximum peak pulse current for different waveform is given in the LCP154DJF datasheet.

    The STEVAL-OET001V1 is able to protect 4 lines; several boards can be used if the number of lines is higher.
    The STEVAL-OET001V1 board specifications comply with ITU-T K20/21/45 and GR1089-Core associated with Cooper Bussmann Telecom Circuit Protector fuse TCP 1.25 A.

    Key Features

    • 4 line protection for SLIC transceivers
    • Compliant with ITU-T K20/21/45 and GR1089-Core
    • Programmable transient suppressor
    • RoHS compliant
