STEVAL-SPIN3204

Active
Design Win
Save to myST

Six-step brushless motor driver evaluation board for applications based on the STSPIN32F0B BLDC controller

Download databrief
Order Direct

Product overview

Description

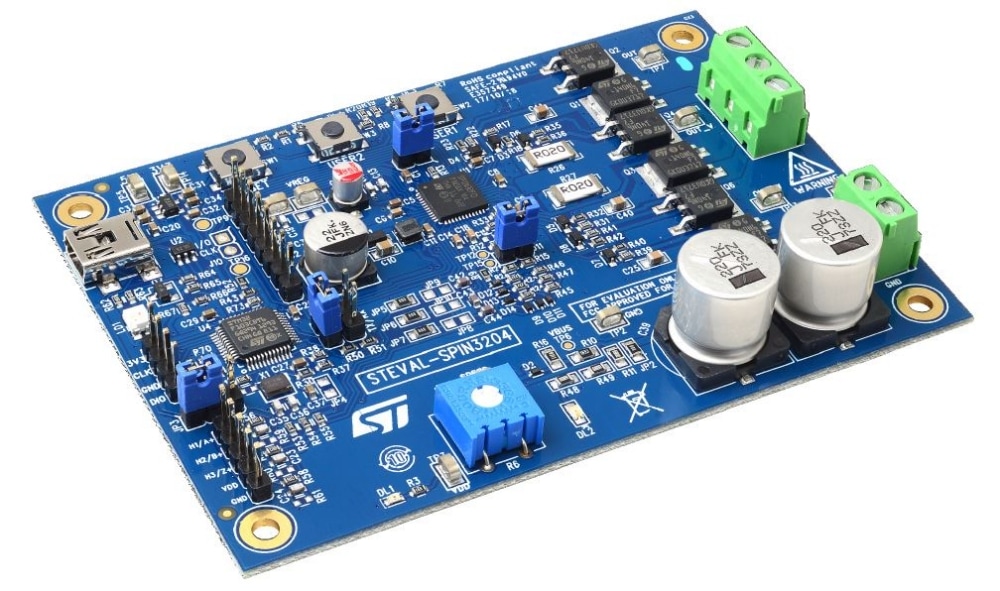

The STEVAL-SPIN3204 three-phase brushless DC motor driver board is based on the STSPIN32F0B 3-phase BLDC controller with triple half-bridge gate driver, single shunt resistor current sensing topology and programmable overcurrent protection.

The motor controller system-in-package includes a microcontroller ready to execute a 6-step algorithm in the firmware, which can be downloaded onto the chip flash memory via the board USB port.

The board is designed to help you to test and to develop motor control designs for applications: power tools, home appliances, fans, and pumps.

A flexible evaluation platform allows you to toggle between external sensor and sensorless position feedback data methods.

  • All features

    • Input voltage from 7 to 45 V
    • Output current up to 15 ARMS
    • Power stage based on STD140N6F7 MOSFET
    • Embedded 3.3 V buck regulator
    • Embedded 12 V LDO regulator
    • Single shunt current sensing
    • Digital Hall sensors and encoder input
    • Overcurrent comparator
    • Bus voltage sensing
    • Embedded ST-LINK/V2-1
    • Easy user interface with buttons and trimmer
    • RoHS and WEEE compliant
    Read more Read less
