Product overview

Description

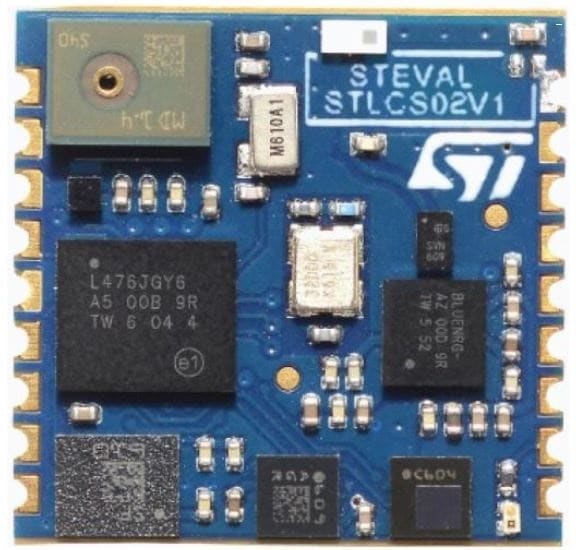

STEVAL-STLCS02V1 (SensorTile) is a highly integrated reference design that can be plugged into form-factor prototypes, adding sensing and connectivity capabilities to new designs through a smart hub solution.

It can also easily support development of monitoring and tracking applications like standalone sensor nodes connected to iOS™ or Android™ smartphone applications.

The SensorTile occupies a very small 13.5 x 13.5 mm square outline, with all the electronic components on the top side. The connector pinout is repeated on 18 PCB pads to render the SensorTile a solderable system on module.

Refer to user manual UM2101 Getting started with the STEVAL-STLKT01V1 SensorTile integrated development platform for more information.

  • All features

    • Very compact module for motion, audio, environmental sensing and Bluetooth® low energy connectivity with a complete set of firmware examples
    • Mobile connectivity via the STBLESensor app, available for iOS™ and Android™
    • Main components:
      • STM32L476JG – 32-bit ultra-low-power MCU with Cortex®M4F
      • LSM6DSM – iNEMO inertial module: 3D accelerometer and 3D gyroscope
      • LSM303AGR – Ultra-compact high-performance eCompass module: ultra-low power 3D accelerometer and 3D magnetometer
      • LPS22HB – MEMS nano pressure sensor: 260-1260 hPa absolute digital output barometer
      • MP34DT05-A – 64 dB SNR digital MEMS microphone
      • BlueNRG-MS – Bluetooth low energy network processor
      • BALF-NRG-02D3 – 50 Ω balun with integrated harmonic filter
      • LD39030SJ18R – 300 mA low quiescent current soft-start, low noise voltage regulator
    • 2 V - 5.5 V power supply range
    • External interfaces: UART, SPI, SAI (Serial Audio Interface), I²C, DFSDM, USB OTG, ADC, GPIOs
    • Solderable only interface (no connector on back side)
    • SWD interface for debugging and programming capability
    • CE certified
    • RoHS and China RoHS compliant
    • WEEE compliant
    • FCC certified
    • IC certified
    • TYPE certified
