STEVAL-STMODLTE

Active
Design Win

LTE connectivity expansion board for STMod+ connector compatible evaluation boards

Download databrief
Overview
Sample & Buy
Solutions
Documentation
CAD Resources
Tools & Software
Quality & Reliability
Get Started
Partner products
Sales Briefcase

Product overview

Description

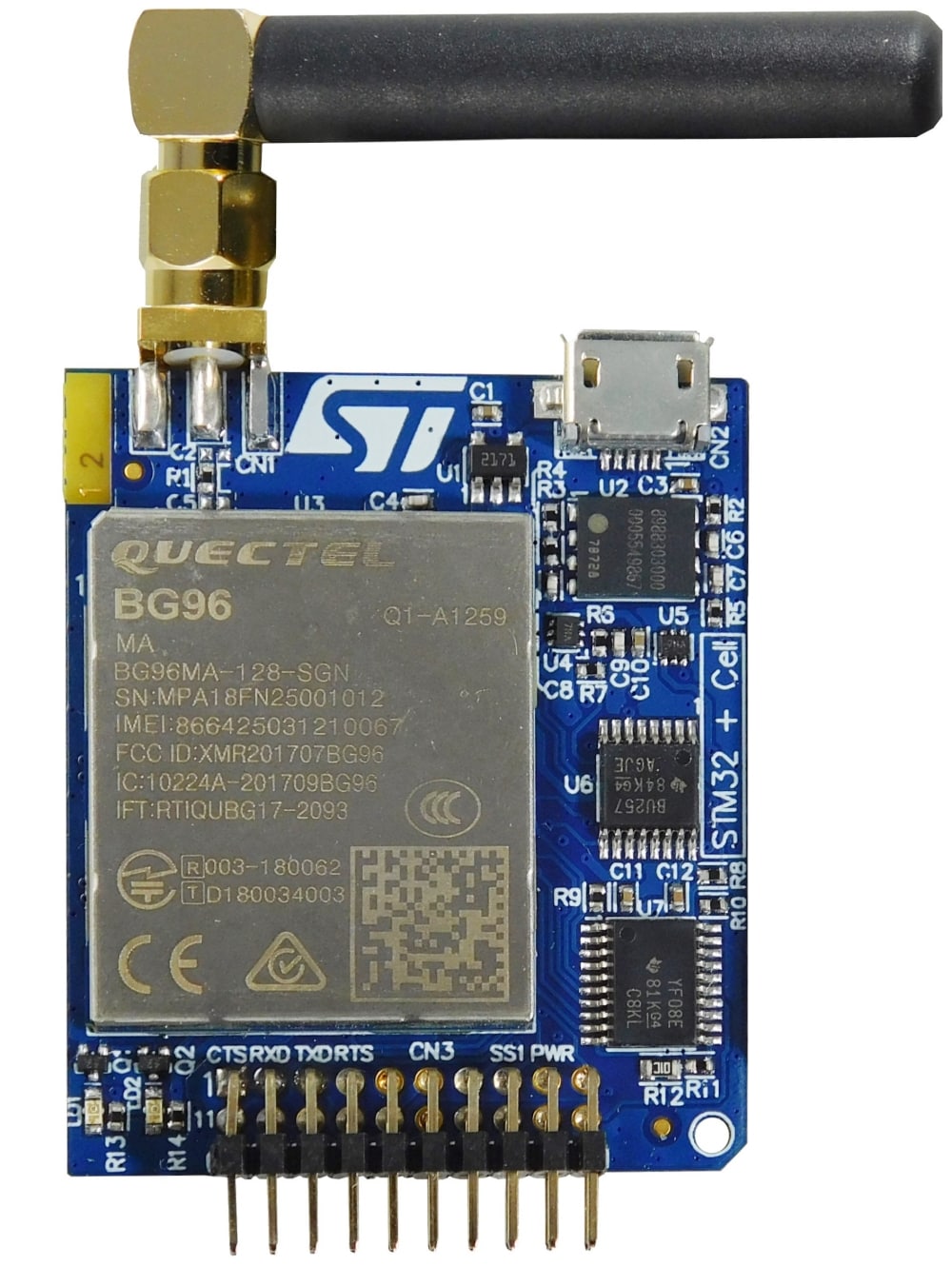

The STEVAL-STMODLTE expansion board adds LTE connectivity to evaluation boards hosting the STMod+ expansion connector. It embeds an LTE cellular modem and an eSIM with a worldwide coverage.

The expansion board can be used only with the furnished antenna and is compatible with all STMicroelectronics Discovery kits featuring an STMod+ connector, such as the STM32L496G-DISCO, and with any STMod+ compatible evaluation board.

The package, combined with any compatible evaluation board, represents an ideal development platform for cellular and cloud technology-based solutions.

  • All features

    • LTE connectivity expansion for evaluation boards hosting the STMod+ connector
    • Embedded Quectel BG96 FCC and IC certified LTE module (FCC ID: XMR201707BG96 and IC: 10224A-201709BG96)
    • Modem reset red LED and modem signaling green LED
    • ST Incard eSIM
    • Switchable SIM interface, eSIM and MicroSIM
    • Pulse SMA antenna for the following frequency ranges: 824/900/1800/1900/2100 MHz
    • Modem firmware can be easily upgraded through the dedicated micro-B USB connector

You might also like...

All tools & software

    • Part number
      Status
      Description
      Type
      Supplier

      STSW-STWINCELL

      Active

      Cellular to cloud connectivity software package for STEVAL-STWINKT1 evaluation kit for industrial IoT applications

      Evaluation Tool Software ST
      STSW-STWINCELL

      Description:

      Cellular to cloud connectivity software package for STEVAL-STWINKT1 evaluation kit for industrial IoT applications
    • Part number
      Status
      Description
      Type
      Supplier

      X-CUBE-CELLULAR

      Active

      Cellular software expansion for STM32Cube

      STM32Cube Expansion Packages ST
      X-CUBE-CELLULAR

      Description:

      Cellular software expansion for STM32Cube
    • Part number
      Status
      Description
      Type
      Supplier

      32L496GDISCOVERY

      Active

      Discovery kit with STM32L496AG MCU

      STM32 Discovery Kits ST
      32L496GDISCOVERY

      Description:

      Discovery kit with STM32L496AG MCU
    • Part number
      Status
      Description
      Type
      Supplier

      STEVAL-STWINKT1B

      Active

      STWIN SensorTile Wireless Industrial Node development kit and reference design for industrial IoT applications

      Sensor Solution Eval Boards ST
      STEVAL-STWINKT1B

      Description:

      STWIN SensorTile Wireless Industrial Node development kit and reference design for industrial IoT applications

Quality and Reliability

Part Number Marketing Status Package Grade RoHS Compliance Grade WEEE Compliant Material Declaration**
STEVAL-STMODLTE
Active
CARD Industrial Ecopack2 Yes

STEVAL-STMODLTE

Package:

CARD

Material Declaration**:

Marketing Status

Active

Package

CARD

Grade

Industrial

RoHS Compliance Grade

Ecopack2

(**) The Material Declaration forms available on st.com may be generic documents based on the most commonly used package within a package family. For this reason, they may not be 100% accurate for a specific device. Please contact our sales support for information on specific devices.

Sample & Buy

Swipe or click the button to explore more details Don't show this again
Part Number
Order from distributors
Order from ST
Core Product
Marketing Status
Supplier
ECCN (US)
ECCN (EU)
Country of Origin
Budgetary Price (US$)*/Qty
STEVAL-STMODLTE Available at distributors

Distributor availability of STEVAL-STMODLTE

Distributor Name
Region Stock Min. Order Third party link

Distributor reported inventory date:

No availability of distributors reported, please contact our sales office
-
Active
ST 5A991.g NEC ITALY

STEVAL-STMODLTE Active

ECCN (US):
5A991.g
Budgetary Price (US$)*/Qty:
-

Part Number:

STEVAL-STMODLTE

Core Product:

-

Supplier:

ST

ECCN (EU):

NEC

Country of Origin:

ITALY

Swipe or click the button to explore more details Don't show this again

(*) Suggested Resale Price (USD) per defined quantity for BUDGETARY USE ONLY. For quotes, prices in local currency, please contact your local ST Sales Office or our Distributors
