STEVAL-TDR006V1

NRND

4 W / 400 - 470 MHz reference design using PD84001 + PD84008L-E + LPF

Download datasheet
Overview
Online design
Sample & Buy
Solutions
Documentation
CAD Resources
Tools & Software
Quality & Reliability
Partner products
Sales Briefcase

Product overview

Description

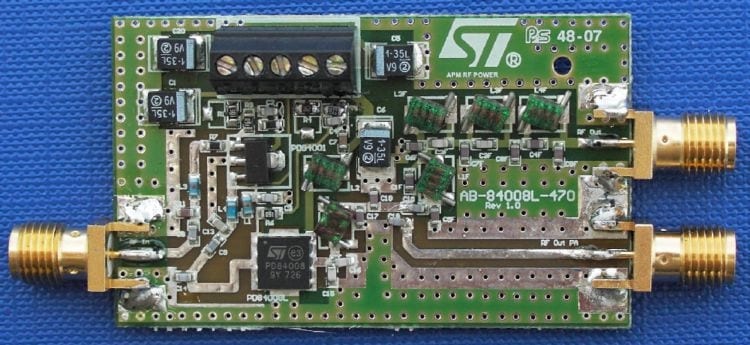

The STEVAL-TDR006V1 is a two stage RF power amplifier which includes a low pass output filter for harmonics rejection specifically designed for portable two-way UHF radio communication.
  • All features

    • BeO-free amplifier
    • VAPC 5 V max
    • RoHS compliant
    • Harmonics level < -70 dBc
    • Input power < 10 dBm
    • Excellent thermal stability
    • Supply voltage: 7.2 V
    • Frequency: 400 - 470 MHz
    • Current < 1.4 A
    • Load mismatch 20:1
    • Output power: 4 W
