STEVAL-TDR009V1

NRND

650 W / 88 - 108 MHz reference design using 2x SD2932

Download datasheet
Overview
Online design
Sample & Buy
Solutions
Documentation
CAD Resources
Tools & Software
Quality & Reliability
Partner products
Sales Briefcase

Product overview

Description

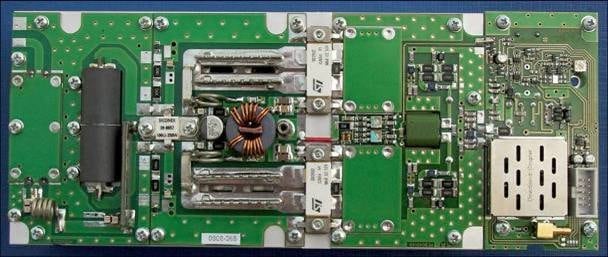

The STEVAL-TDR009V1 is a RF broadband power amplifier intended for FM broadcast radio transmitters over the band 87.5 to 108 MHz using 2 x SD2932 gold metallized N-channel MOS fieldeffect transistors. STEVAL-TDR009V1 is designed in cooperation with InnovAction s.r.l in italy.
  • All features

    • Harmonics < - 36 dBc
    • Efficiency: 73 % min.
    • Excellent thermal stability
    • Supply voltage: 48 V
    • Frequency: 87.5 - 108 MHz
    • Gain: 19.5 dB min.
    • Gain flatness: ± 0.5 dB max
    • Output power: 650 W min.

Recommended for you

Quality and Reliability

Part Number Marketing Status Package Grade RoHS Compliance Grade WEEE Compliant Material Declaration**
STEVAL-TDR009V1
NRND
CARD Industrial Ecopack2 -

STEVAL-TDR009V1

Package:

CARD

Material Declaration**:

Marketing Status

NRND

Package

CARD

Grade

Industrial

RoHS Compliance Grade

Ecopack2

(**) The Material Declaration forms available on st.com may be generic documents based on the most commonly used package within a package family. For this reason, they may not be 100% accurate for a specific device. Please contact our sales support for information on specific devices.

Sample & Buy

Part Number
Order from Distributors
Order from ST
Core Product
Marketing Status
Supplier
ECCN (US)
ECCN (EU)
Board production status
Country of Origin
Budgetary Price (US$)*/Qty
STEVAL-TDR009V1 No availability of distributors reported, please contact our sales office SD2932
NRND
- EAR99 NEC - ITALY 884.0 / 1

STEVAL-TDR009V1

Core Product

SD2932

Marketing Status

NRND

Budgetary Price (US$)*/Qty

884.0 / 1

Supplier

-

ECCN (US)

EAR99

ECCN (EU)

NEC

Budgetary Price (US$)* / Qty

884.0 / 1

Board production status

-

Country of Origin

ITALY

(*) Suggested Resale Price (USD) per defined quantity for BUDGETARY USE ONLY. For quotes, prices in local currency, please contact your local ST Sales Office  or our Distributors
