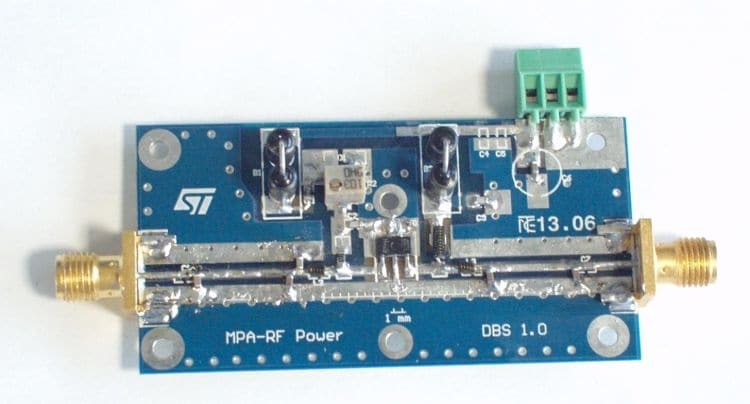

The STEVAL-TDR025V1 demonstration board is a portable UHF 2-way radio designed as a platform for valuating the performance of the PD84001 LDMOS RF power transistor.
Key Features
- Excellent thermal stability
- Frequency: 380 - 520 MHz
- Supply voltage: 7.2 V
- Output power: 1 W
- Power gain: 15.5 ± 0.7 dB
- Efficiency: 58 % - 67 %
- Load mismatch: 20:1
- BeO-free amplifier
