STM3210E-EVAL

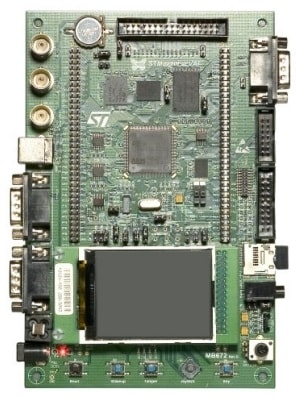

The STM3210E-EVAL evaluation board is a complete development platform for STMicroelectronic's ARM Cortex-M3 core-based STM32F103ZET6 or STM32F103ZGT6 microcontroller. The range of hardware features on the board help you to evaluate all peripherals (LCD, SPI Flash, USART, IrDA, USB, audio, CAN bus, smartcard, MicroSD Card, NOR Flash, NAND Flash, SRAM, temperature sensor, audio DAC and motor control) and develop your own applications.

\n

Extension headers make it easy to connect a daughterboard or wrapping board for your specific application.

Key Features

I2C/SMBus compatible serial interface temperature sensor
RTC with backup battery
64 or 128 Mbit serial Flash, 512 Kx16 SRAM, 512 Mbit or 1 Gbit NAND Flash and 128 Mbit NOR Flash
4 color LEDs
IrDA transceiver
Two RS-232 channels with RTS/CTS handshake support on one channel
CAN 2.0A/B compliant connection
daughterboard
USB 2.0 full speed connection
JTAG and trace debug support
Inductor motor control connector
240x320 TFT color LCD
128 Mbyte MicroSD Card™ or bigger
I2S audio DAC, stereo audio jack
Three 5 V power supply options:
Boot from user Flash, system memory or SRAM
Both A and B type smartcard support
Reset, wakeup, tamper and user buttons
Joystick with 4-direction control and selector


Resources

Technical Documentation

Product Specifications

	Description	Version	Size
	DB1054: STM3210E-EVAL evaluation board	3.1	197.89 KB

Application Notes

	Description	Version	Size
	AN3240: Ultrasound HV pulser demonstration board	1.1	1.2 MB
	AN2784: Using the high-density STM32F10xxx FSMC peripheral to drive external memories	4.2	284.94 KB

Technical Notes & Articles

	Description	Version	Size
	TN1235: Overview of ST-LINK derivatives	2.0	670.76 KB

User Manuals

	Description	Version	Size
	UM0488: STM3210E-EVAL evaluation board	6.1	1.12 MB

Presentations & Training Material

Presentations

	Description	Version	Size
	STM32 Development Boards Portfolio	1.0	3.08 MB
	STM32 PMSM FOC SDK Getting Started	1.6	5.16 MB

Publications and Collaterals

Flyers

	Description	Version	Size
	STM32 for makers - Releasing your creativity	18.01	1.76 MB

Brochures

	Description	Version	Size
	STM32 32-bit MCU family - Leading supplier of Arm® Cortex®-M microcontrollers	18.02	2.06 MB

Legal

License Agreement

	Description	Version	Size
	Evaluation products license agreement	1.6	74.12 KB
	Open Reference Material License Agreement v5		42.53 KB

Tools and Software

Development Tools

Software Development Tools

Part Number	Manufacturer	Description
ST-LINK-SERVER	ST	ST-LINK server software module
STSW-LINK007	ST	ST-LINK, ST-LINK/V2, ST-LINK/V2-1, STLINK-V3 boards firmware upgrade
STSW-LINK009	ST	ST-LINK, ST-LINK/V2, ST-LINK/V2-1 USB driver signed for Windows7, Windows8, Windows10

Embedded Software

MCU & MPU Embedded Software

Part Number	Manufacturer	Description
STM32CubeF1	ST	STM32Cube MCU Package for STM32 F1 series (HAL, Low-Layer APIs and CMSIS (CORE, DSP, RTOS), USB, TCP/IP, File system, RTOS, Graphic - coming with examples running on ST boards: STM32 Nucleo, Discovery kits and Evaluation boards)
STSW-STM32083	ST	STM3210E-EVAL demonstration firmware (UM0549)
X-CUBE-MCSDK-FUL	ST	STM32 Motor Control Software Development Kit (MCSDK) - FULL source code - Registration and approbation needed for download
