X-NUCLEO-53L3A2

Active
Design Win

Multi-targets ranging sensor expansion board based on VL53L3CX for STM32 Nucleo

Download databrief Order Direct
Overview
Sample & Buy
Solutions
Documentation
CAD Resources
Tools & Software
Quality & Reliability
Get Started
Partner products
Sales Briefcase

Product overview

Description

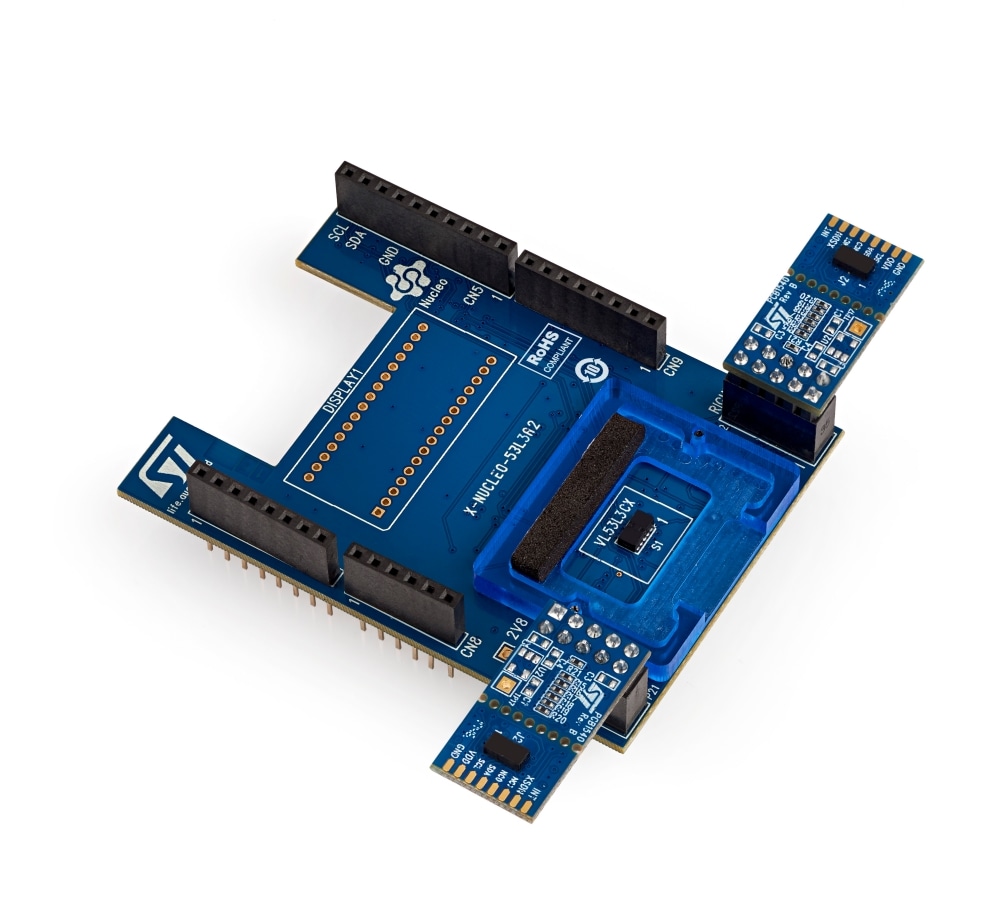

The X-NUCLEO-53L3A2 is an expansion board for the NUCLEO-F401RE development board. It provides a complete evaluation kit allowing anyone to learn, evaluate, and develop their applications using the VL53L3CX, ranging sensor with multi target detection..

The X-NUCLEO-53L3A2 expansion board is delivered with a cover glass holder in which three different spacers of 0.25, 0.5, and 1 mm height can be fitted below the cover glass to simulate various air gaps.

Two VL53L3CX breakout boards can be connected using two 10-pin connectors.

The X-NUCLEO-53L3A2 expansion board is compatible with the STM32 nucleo board family, and with the Arduino UNO R3 connector layout.

Several ST expansion boards can be superposed through the Arduino connectors which allows, for example, the development of VL53L3CX applications with Bluetooth or Wi-Fi interfaces.

  • All features

    • VL53L3CX Time-of-Flight (ToF) ranging sensor with multi target detection
    • Accurate absolute ranging distance, independent of the reflectance of the target
    • 0.25, 0.5, and 1 mm spacers to simulate air gaps
    • Two different cover windows
    • Two VL53L3CX breakout boards
    • Compatible with STM32 Nucleo board family
    • Equipped with Arduino™ UNO R3 connector
    • RoHS compliant
    • Full system software (SW) supplied, including code examples and graphical user interface. All this can be downloaded from the VL53L3CX product page on st.com.

You might also like...

Quality and Reliability

Part Number Marketing Status Package Grade RoHS Compliance Grade WEEE Compliant Material Declaration**
X-NUCLEO-53L3A2
Active
CARD Industrial Ecopack1 -

X-NUCLEO-53L3A2

Package:

CARD

Material Declaration**:

Marketing Status

Active

Package

CARD

Grade

Industrial

RoHS Compliance Grade

Ecopack1

(**) The Material Declaration forms available on st.com may be generic documents based on the most commonly used package within a package family. For this reason, they may not be 100% accurate for a specific device. Please contact our sales support for information on specific devices.

Sample & Buy

Swipe or click the button to explore more details Don't show this again
Part Number
Order from distributors
Order from ST
Marketing Status
Supplier
General Description
ECCN (US)
ECCN (EU)
Country of Origin
Budgetary Price (US$)*/Qty
X-NUCLEO-53L3A2 Available at distributors

Distributor availability of X-NUCLEO-53L3A2

Distributor Name
Region Stock Min. Order Third party link

Distributor reported inventory date:

No availability of distributors reported, please contact our sales office
Active
ST Multi-targets ranging sensor expansion board based on VL53L3CX for STM32 Nucleo EAR99 NEC CHINA

X-NUCLEO-53L3A2 Active

ECCN (US):
EAR99
Budgetary Price (US$)*/Qty:
-

Part Number:

X-NUCLEO-53L3A2

Supplier:

ST

General Description:

Multi-targets ranging sensor expansion board based on VL53L3CX for STM32 Nucleo

ECCN (EU):

NEC

Country of Origin:

CHINA

Distributor Name

Distributor reported inventory date:

Swipe or click the button to explore more details Don't show this again

(*) Suggested Resale Price (USD) per defined quantity for BUDGETARY USE ONLY. For quotes, prices in local currency, please contact your local ST Sales Office or our Distributors
