Product overview
Description

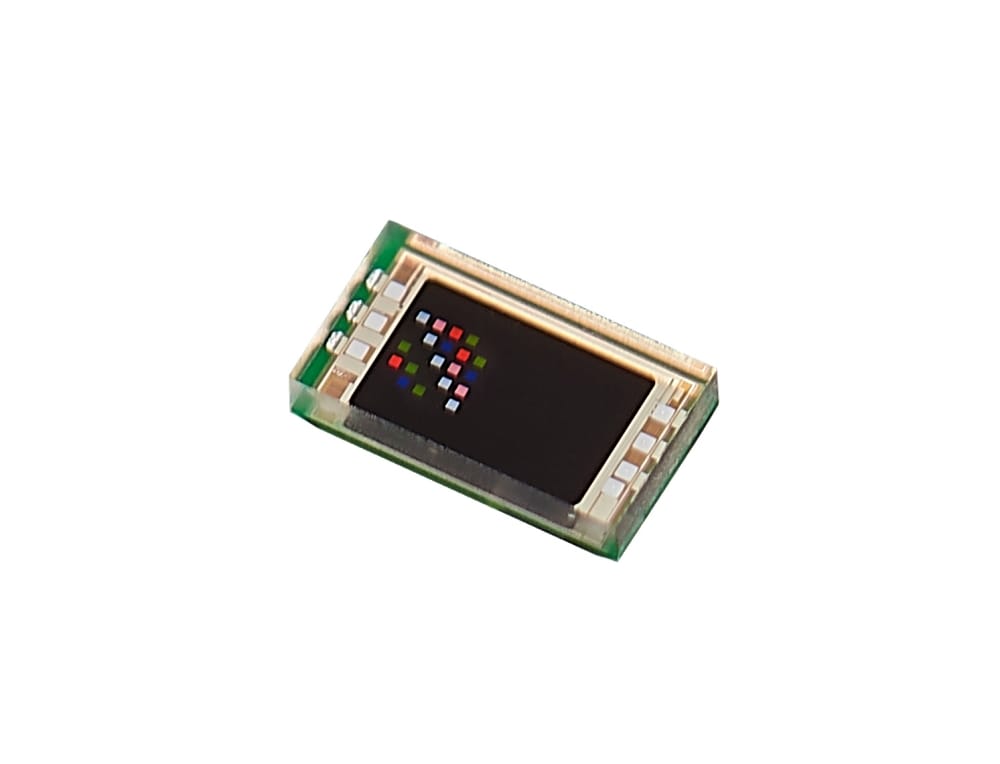

The VD6283TAB (1.83 x 1.0 x 0.55 mm) is the new version of ST's ambient light sensors with advanced light flicker extraction. Light measurement is fast and accurate thanks to an individual ADC and a readout for each color channel. The VD6283TAB uses hybrid color filters with precise responses which enhance the accuracy of the correlated color temperature (CCT) and Lux performance. The VD6283TAB can be used to assist camera white-balance in less than 30 ms.
With a patented architecture and a high-performance photodiode design, the VD6283TAB can extract light flickering frequencies to enhance camera experience, and avoid “banding effects” on videos or viewfinder modes. Additionally, the VD6283TAB is the only sensor able to extract different light flicker waveforms, including LED square signals, that can run flicker operations simultaneously with ALS operations.
-
All features
- Miniature optical module
- 1.83 x 1.0 x 0.55 mm
- Optical BGA, 6-balls, reflowable package
- Operates with phone cover glass on top
- ALS operation with 6 independent channels
- Advanced hybrid filters with high photocount response
- Parallel sensing of all channels: red, green, blue, IR, clear, and visible
- High dynamic range from 7 mLux to 30 klx (green channel)
- High sensitivity and low noise in low light conditions
- Light flicker extraction
- Innovative readout architecture to extract AC light flicker signal
- From 100 Hz to 2 kHz frequency detection, sine or square wave
- Several extraction modes available (analog or digital)
- Software driver provided by ST
- I²C interface up to 1 Mbit/s (Fast mode plus)
- Perfectly suited for mobile applications
- 1.8 V power supply
- Low-power consumption
- Operating temperature -30 to 85°C
- Miniature optical module
