800 V STPOWER MDmesh K6 series

800 V STPOWER MDmesh K6 superjunction MOSFETs in DPAK package

Industry best on-resistance per area enabling higher power density and more compact solutions

The 800 V STPOWER MDmesh K6 series sets a new benchmark in terms of best-in-class performance and remarkable ease of use.

This latest very high voltage superjunction technology delivers best-in-class RDS(on) in a DPAK package to help designers increase system power density in more compact solutions. In combination with very low Qg, these devices achieve higher frequency operation with lower switching losses.

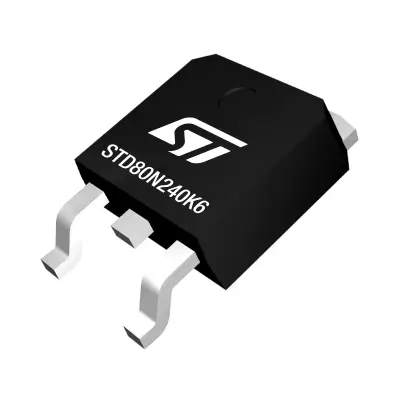

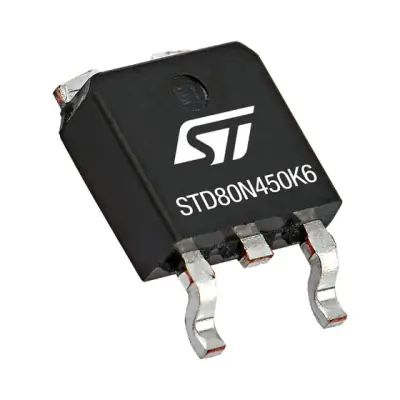

The current products in DPAK package in full production are STD80N240K6 (RDS(on) max. 220mΩ), STD80N340K6 (RDS(on) max. 340mΩ), and STD80N450K6 (RDS(on) max. 450mΩ), with more products coming.

The full 800 V STPOWER MDmesh K6 portfolio includes a range of other devices in various packages.

This product family is ideal for lighting applications such as LED drivers and HID lamps, and for SMPS using flyback topology in adapters and flat-panel televisions.

Key features

  • Worldwide best RDS(on) x area
  • Worldwide best figure of merit
  • Ultralow gate charge
  • 100% avalanche tested
  • Zener-protected

Application examples

  • LED drivers
  • HID lamps
  • Adapters
  • Flat panel televisions
