TSB7 series
Precision operational amplifier
Rail-to-rail input & output, 36 V op amps for robust automotive and industrial applications
Our 6 MHz (TSB711 and TSB712) and 22 MHz (TSB7191 and TSB7192) bandwidth amplifiers are available in single and dual channel versions with rail-to-rail input and output and are guaranteed to operate from a +2.7 to +36 V single supply as well as from ±1.35 to ±18 V for dual supplies. The combination of wide bandwidth, slew rate, low noise, rail-to-rail capability and precision makes these amplifiers useful in a wide variety of applications including filters, power supplies and motor control, actuator driving, Hall-effect sensors and resistive transducers.
Products
TSB711
single-channel, precision, 6 MHz, rail-to-rail Input and Output, 36 V op amps

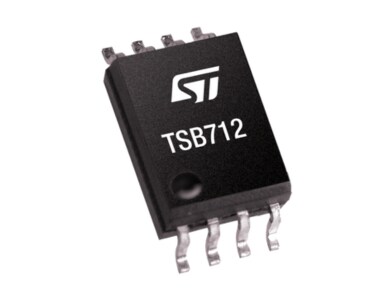

TSB712
dual-channel, precision, 6 MHz, rail-to-rail Input and Output, 36 V op amps

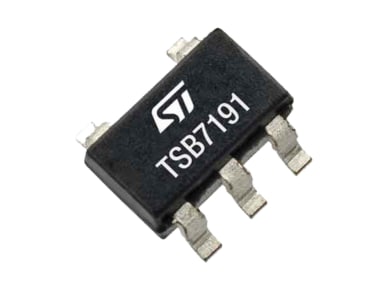

TSB7191
single-channel, precision, 22 MHz, rail-to-rail Input and Output, 36 V op amps

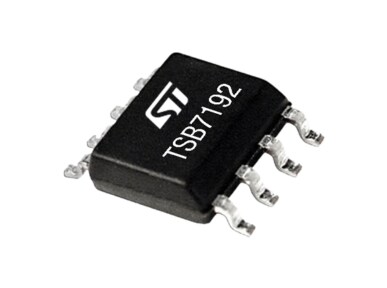

TSB7192
dual-channel, precision, 22 MHz, rail-to-rail Input and Output, 36 V op amps
Key features
- Rail-to-rail output
- Low offset voltage: 300 µV (maximum)
- Wide supply voltage range: 2.7 to 36 V
- Gain bandwidth product: 6 MHz (unity-gain stable), 22 MHz (decompensated)
- Slew rate: 3 V/µs (unity-gain stable) or 12 V/µs (decompensated)
- Low noise: 12 nV/√Hz
- Extended temperature range: -40 to +125 °C
Application examples
Current sensing
Data acquisition
Motor control
Strain gauge
How to select the right 36 V precision op amp?
Recommended resources
eDSim: fast and powerful electrical simulation software for analog ICs
eDSim: fast and powerful electrical simulation software for analog ICs
Design your analog circuit, get a quick preview with fully annotated schematic and BOM, and then run the electrical simulation through eDSim for fast and accurate simulations and reliable design validation.
Operational amplifier Quick Reference Guide
Operational amplifier Quick Reference Guide
Download this very practical PDF resource covering:
- How to pick the right op amp for an application
- Typical op amp applications and key parameters
- Step-by-step op amp selection using the ST Op Amps app
- ST op amp naming convention glossary

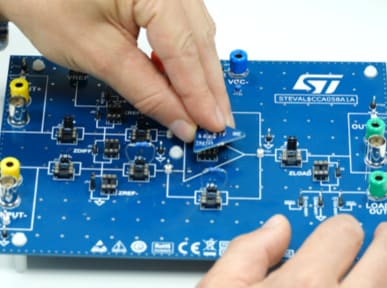

Training kit for operational amplifiers and comparators
