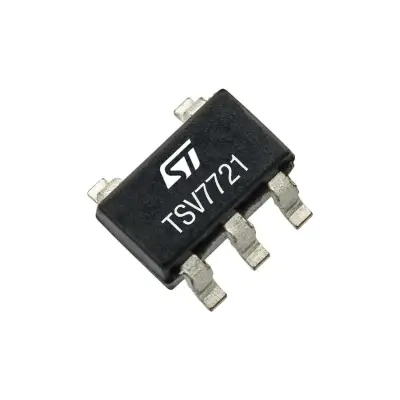

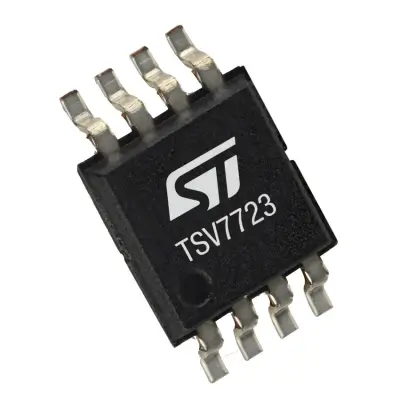

TSV772x

TSV772x 22 MHz bandwidth, low-offset (200 µV) op amps

Single and dual 22-MHz bandwidth unity-gain-stable amplifiers for high-accuracy, high-bandwidth sensor interfaces.

TSV772x family op amps feature an input offset voltage that is optimized for common mode close to ground, which is ideal for low-side current measurements in A/D converter input buffers. Their ultralow input bias current also enables connection to photodiodes and other sensors where current and accuracy are key factors.

Key features

  • Gain bandwidth product 22 MHz, unity gain stable
  • High accuracy input offset voltage: 50 µV typ., 200 µV max.
  • Low input bias current: 2 pA typ.
  • Low input voltage noise density: 7 nV/√Hz
  • Wide supply voltage range: 1.8 V to 5.5 V
  • Output rail-to-rail
  • Input common-mode range includes low rail

Application examples

  • Low-side current measurement
  • Photodiode amplifiers
  • Automotive current measurement and sensor signal conditioning
  • Strain gauges signal conditioning

Recommended resources

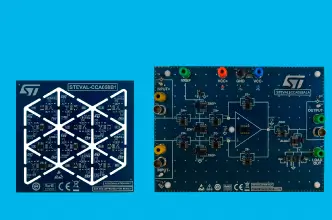

steval-cca058v1

Easy-to-use setup for experimenting and learning with low-frequency op amp-based applications and common op amp-based schematics.

op amp finder

Easy-to-use selector tool with sorting, compare, and electrical parameter filter capabilities. Also provides commonly used schematics, compensation methods, and package information.

pdf op amp guide

Download this very practical PDF resource covering:

  • How do I pick the right op amp for an application?
  • Typical op-amp applications and key parameters
  • Step-by-step op-amp selection using the ST Op Amps App
  • ST's op-amp naming convention
  • Glossary
pdf current sensing guide

Download this very practical PDF resource covering:

  • Typical applications and key parameters
  • Product portfolio
  • Current sense monitor vs operation amplifier
  • Glossary
stsw-edsim

Start your analog circuit design with eDesignSuite, get a quick preview with fully annotated schematic and BOM, and then export your project to eDSim for fast and accurate electrical simulations and reliable design validation.
