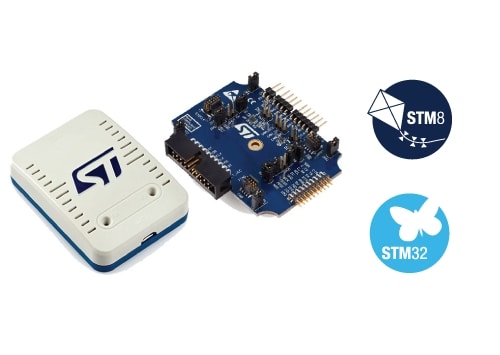

  • The STLINK-V3SET is a modular stand-alone debugging and programming probe for the STM8 and STM32 microcontrollers. It is composed of a main module and a complementary adapter board.

    The SWIM and JTAG/SWD interfaces are used to communicate with any STM8 or STM32 microcontroller located on an application board.
    The STLINK-V3SET also provides a Virtual COM port interface allowing the host PC to communicate with the target microcontroller through one UART, and bridge interfaces (SPI, I2C, CAN, GPIOs) allowing for instance the programming of the target through the bootloader.
    The STLINK-V3SET can provide a second Virtual COM port interface allowing the host PC to communicate with the target microcontroller through another UART (called bridge UART). Bridge UART signals, including optional RTS and CTS, are available on adapter board only (MB1440). The second Virtual COM port activation is done through a reversible firmware update, which also disables the mass storage interface (used for drag-and-drop flash programming).
    The modular architecture of STLINK-V3SET enables to extend its main features through additional modules such as the adapter board.

    Key Features

    • Stand-alone probe with modular extensions
    • Self-powered through a USB connector (Micro-B)
    • USB 2.0 high-speed compatible interface
    • Direct firmware update support (DFU)
    • JTAG / serial wire debugging (SWD) specific features:
      • 3 to 3.6 V application voltage support and 5 V tolerant inputs
      • Flat cables STDC14 to MIPI10 / STDC14 / MIPI20 (connectors with 1.27 mm pitch)
      • JTAG communication support
      • SWD and serial wire viewer (SWV) communication support
    • SWIM specific features (only available with adapter board MB1440):
      • 1.65 to 5.5 V application voltage support
      • SWIM header (2.54 mm pitch)
      • SWIM low-speed and high-speed modes support
    • Virtual COM port (VCP) specific features:
      • 3 to 3.6 V application voltage support on the UART interface and 5 V tolerant inputs
      • VCP frequency up to 15 MHz
      • Available on STDC14 debug connector (not available on MIPI10)
    • Multi-path bridge USB to SPI/UART/I2C/CAN/GPIOs specific features:
      • 3 to 3.6 V application voltage support and 5 V tolerant inputs
      • Signals available on adapter board only (MB1440)
    • Drag-and-drop flash programming of binary files
    • Two-color LEDs: communication, power

Recommended for you

All tools & software

    • Part number
      Status
      Description
      Type
      Supplier

      B-STLINK-VOLT

      Active

      Voltage adaptation board for STLINK-V3SET

      ST
      B-STLINK-VOLT

      Description:

      Voltage adaptation board for STLINK-V3SET
    • Part number
      Status
      Description
      Type
      Supplier

      ST-LINK-SERVER

      Active

      ST-LINK server software module

      STM32 Performance and Debuggers ST

      STLINK-V3-BRIDGE

      Active

      Software API compatible with the bridge interface of STLINK-V3

      STM32 Programmers ST

      STM32CubeProg

      Active

      STM32CubeProgrammer software for all STM32

      STM32 Programmers ST

      STSW-LINK007

      Active

      ST-LINK, ST-LINK/V2, ST-LINK/V2-1, STLINK-V3 boards firmware upgrade

      STM32 Programmers ST

      STSW-LINK009

      Active

      ST-LINK, ST-LINK/V2, ST-LINK/V2-1 USB driver signed for Windows7, Windows8, Windows10

      STM32 Utilities ST
      ST-LINK-SERVER

      Description:

      ST-LINK server software module
      STLINK-V3-BRIDGE

      Description:

      Software API compatible with the bridge interface of STLINK-V3
      STM32CubeProg

      Description:

      STM32CubeProgrammer software for all STM32
      STSW-LINK007

      Description:

      ST-LINK, ST-LINK/V2, ST-LINK/V2-1, STLINK-V3 boards firmware upgrade
      STSW-LINK009

      Description:

      ST-LINK, ST-LINK/V2, ST-LINK/V2-1 USB driver signed for Windows7, Windows8, Windows10
