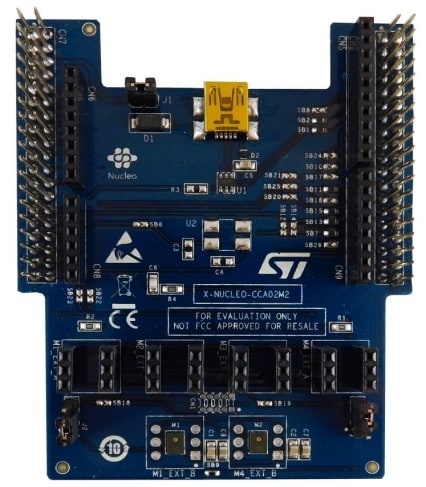

  • The X-NUCLEO-CCA02M2 expansion board has been designed around MP34DT06J digital MEMS microphone.

    It is compatible with the ST morpho connector layout and with digital microphone coupon boards such as STEVAL-MIC001V1, STEVAL-MIC002V1 and STEVAL-MIC003V1.
    The X-NUCLEO-CCA02M2 embeds two MP34DT06J microphones and allows synchronized acquisition and streaming of up to 4 microphones through I²S, SPI, DFSDM or SAI peripherals.
    It represents a quick and easy solution for the development of microphone-based applications as well as a starting point for audio algorithm implementation.

    Key Features

    • 2 on-board MP34DT06J digital MEMS microphones
    • 6 slots to plug in digital microphone coupon boards such as STEVAL-MIC001V1, STEVAL-MIC002V1 and STEVAL-MIC003V1
    • Synchronized acquisition and streaming of up to 4 microphones
    • Free comprehensive development firmware library and audio capture plus USB streaming sample application compatible with STM32Cube
    • Compatible with STM32 Nucleo boards
    • Equipped with ST morpho connector (upwards and downwards)
    • Equipped with Arduino UNO R3 connector (upwards) to allow multiple boards
    • RoHS and WEEE compliant
