Description

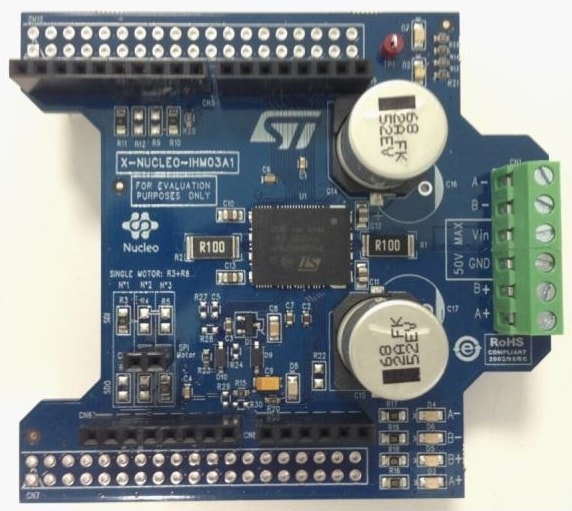

The X-NUCLEO-IHM03A1 is an high power stepper motor driver expansion board based on powerSTEP01. It provides an affordable and easy-to-use solution for driving high power bipolar stepper motors in your STM32 Nucleo project. The fully digital motion control through speed profile generation, adding positioning calculations and a complete set of protection features, offers high levels of performance and robustness. The X-NUCLEO-IHM03A1 is compatible with the Arduino UNO R3 connector, and supports the addition of other boards which can be stacked to drive up to three stepper motors with a single STM32 Nucleo board.

All features
Power system-in-package, integrated dual full-bridge with low RDS(on)

Voltage range from 10.5 V to 85 V

Phase current up to 10 A rms

Power OK and fault LEDs

Up to 1/128 micro-stepping

Programmable speed profile and overcurrent protection

Sensorless stall detection
Adjustable output slew rate

Overtemperature protection

Compatible with Arduino UNO R3 connector

Compatible with STM32 Nucleo boards

Suitable for multi-motor solution

RoHS compliant
Read more Read less
