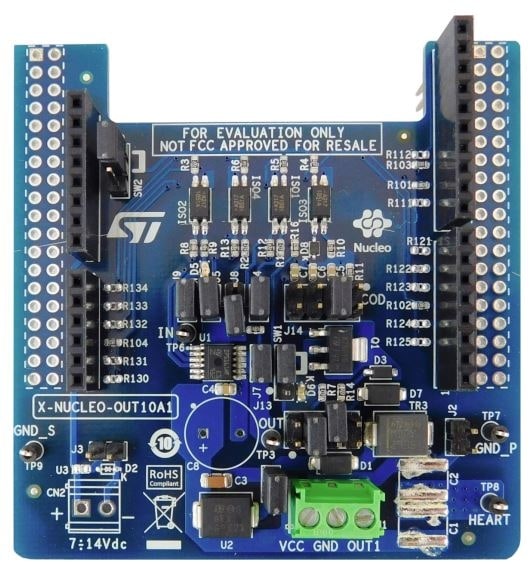

  • The X-NUCLEO-OUT10A1 industrial digital output expansion board for STM32 Nucleo provides an affordable and easy-to-use solution for the development of 0.5 A (typ.) digital output modules, letting you easily evaluate the IPS161HF driving and diagnostic capabilities with industrial loads.

    The X-NUCLEO-OUT10A1 interfaces with the microcontroller on the STM32 Nucleo via 3 kV optocouplers driven by GPIO pins and Arduino™ UNO R3 (default configuration) and ST morpho (optional, not mounted) connectors.
    The expansion board should be connected to either a NUCLEO-F401RE or NUCLEO-G431RB development board, and can be stacked with another X-NUCLEO-OUT10A1 or an X-NUCLEO-OUT08A1 .
    Two X-NUCLEO-OUT10A1 expansion boards allows you to evaluate a dual channel digital output module with 0.5 A (typ.) capability each, or a 0.5 A (typ.) single channel safety digital output module. In the second scenario, the first shield output is connected to the supply of the second one. Dedicated on-board hardware can be enabled or disabled to activate fast discharge of high capacitive loads, output voltage sensing and additional surge pulse output line protection.

    Key Features

    • Based on IPS161HF single high-side switch with the following main features:
      • Operating range up to 60 V/0.7 A
      • Low power dissipation (RON(MAX) = 120 mΩ)
      • Fast decay for inductive loads
      • Open load detection and diagnostics
      • Overload and overheating protections with thermal shut-down and cut-off
      • PowerSSO-12L package
    • Application board operating range: 12 - 33 V, 0 to 0.7 A
    • Extended voltage operating range (J1 open) up to 60 V
    • Green LED for output ON/OFF status
    • Red LED for diagnostics (open load, cut-off and overheating)
    • 3 kV galvanic isolation
    • Supply rail reverse polarity protection
    • Ready for Safety Digital Output Architecture
    • EMC compliance according to IEC61000-4-2, IEC61000-4-3, IEC61000-4-5
    • Wide application development potential in STM32 Nucleo development environment
    • Equipped with Arduino™ UNO R3 connectors
    • CE certified
    • RoHS and China RoHS compliant
