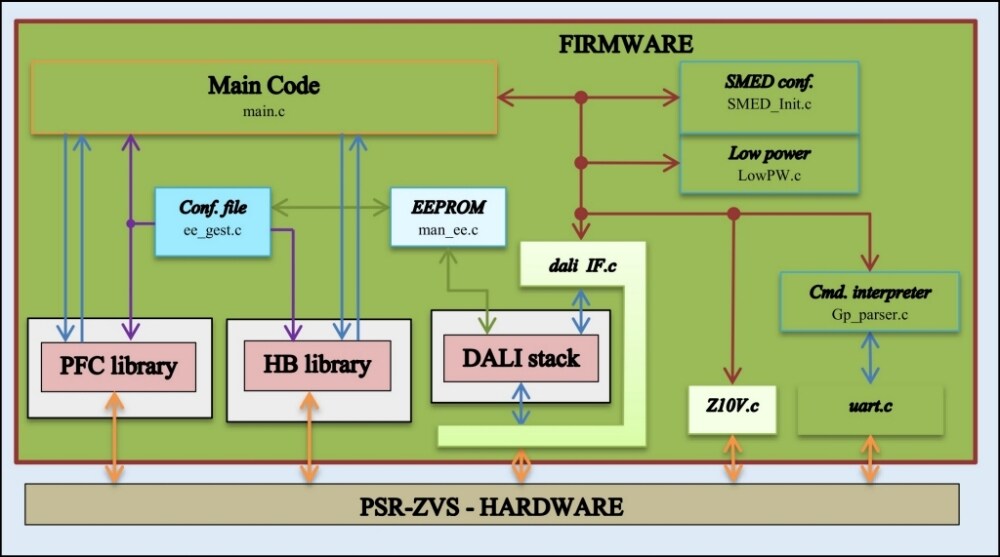

  • The STSW-ILL066V2 firmware for the STEVAL-ILL066V2 evaluation board is a comprehensive and configurable solution for the control of a single dimmable high brightness LED string using the STLUX385A digital controller.

    The firmware controls the PFC stage and drives the half-bridge stage to generate a constant current on the LED string.
    This firmware is only intended for use with the STEVAL-ILL066V2 evaluation board.

    Key Features

    • Firmware for STLUX385A device mounted on STEVAL-ILL066V2 evaluation board
    • Enables full STEVAL-ILL066V2 evaluation board functionality
    • Intel HEX file format
    • Free, user-friendly license terms

Get Software

Recommended for you

00 Files selected for download

Technical Documentation

    • Description Version Size Action
      DB3349
      Firmware for 100 W LED street lighting evaluation board using STLUX385A
      1.0
      303.72 KB
      PDF
      DB3349

      Firmware for 100 W LED street lighting evaluation board using STLUX385A

    • Description Version Size Action
      UM2270
      Getting started with the STSW-ILL066V2 firmware for LED lighting applications
      2.0
      1.45 MB
      PDF
      UM2270

      Getting started with the STSW-ILL066V2 firmware for LED lighting applications
