STSW-ILL083V1 firmware

Get Software Download databrief

Product overview


The STSW-ILL083V1 firmware drives the smart LED lighting logic on the STEVAL-ILL083V1 board.

The software runs on the STM32L0 and includes the drivers required for interfacing with the on-board HVLED815PF LED driver and SPBTLE-RF very low power module for Bluetooth Smart v4.1.

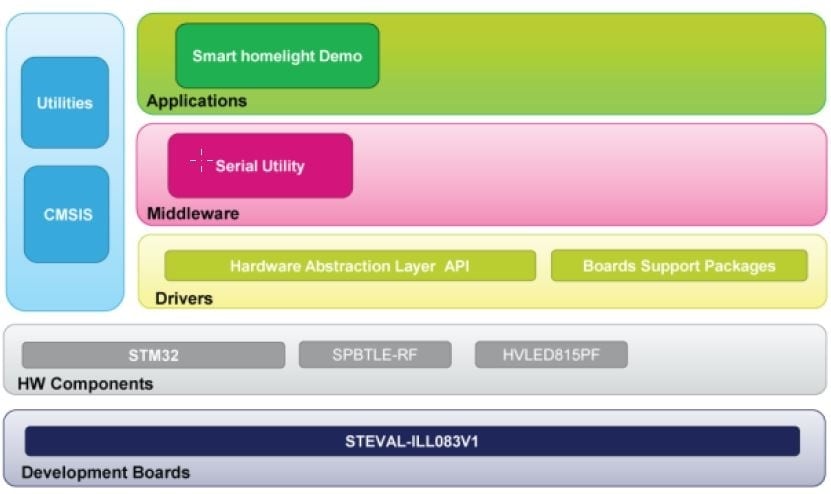

The software is built on STM32Cube software technology to ease portability across different STM32 microcontrollers.

The STEVAL-ILL083V1 can be connected to a smartphone with the LEDBTLE.APK Android™ LED lamp remote control and dimming app available on the Google Play™ store.

  • All features

    • Complete middleware to build applications using the STM32L0 microcontroller, the SPBTLE-RF very low power module for Bluetooth Smart v4.1 and the HVLED815PF off-line LED driver
    • Easy portability across different MCU families, thanks to STM32Cube libraries
    • AT commands from master to slave
    • Free, user-friendly license terms
