  • The X-CUBE-IOD02 package is a software expansion for STM32Cube with driver for the L6364 transceiver, a mini-stack library and an IODD configuration file.

    The package allows you to develop IO-Link sensor applications based on the L6364 mounted on the X-NUCLEO-IOD02A1 expansion board when connected to a NUCLEO-L073RZ or NUCLEO-G071RB development board.

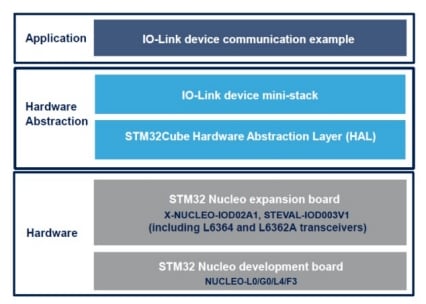

    The software architecture is based on a mini-stack library combined with source code communicating via APIs, and is designed to accommodate custom application development.
    The expansion is built on STM32Cube software technology to ease portability across different STM32 microcontrollers.

    Key Features

    • Complete software to build applications for the L6364 IO-Link transceiver
    • GPIOs, SPI, UART and IRQs configuration
    • Smart software architecture based on a mini-stack library combined with source code (communicating through API) and IODD configuration file
    • Sample implementation available for X-NUCLEO-IOD02A1 expansion board connected to a NUCLEO-L073RZ or NUCLEO-G071RB development board
    • Easy portability across different MCU families, thanks to STM32Cube
    • Free, user-friendly license terms
