  • X-CUBE-LED1 is an expansion software package for STM32Cube. The software runs on the STM32 microcontroller and includes drivers for controlling a string of high-brightness LEDs. The expansion is built on STM32Cube software technology to ease portability across different STM32 microcontrollers. The software comes with sample implementations of drivers running on the X-NUCLEO-LED61A1 plugged on a NUCLEO-F401RE or NUCLEO-L053R8.

    Key Features

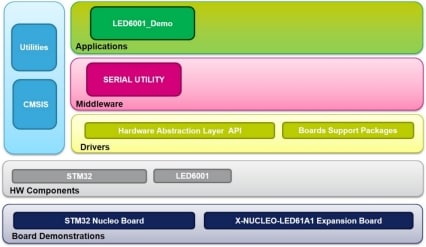

    • Complete middleware package to build applications using LED driver (LED6001) and hardware expansion board (X-NUCLEO-LED61A1) for STM32 Nucleo.
    • Example demo status information on PC serial utilities like HyperTerminal.
    • Sample implementation available on X-NUCLEO-LED61A1 board plugged to a NUCLEO-F401RE or NUCLEO-L053R8 board.
    • Easy portability across different MCU families thanks to STM32Cube.
    • Free, user-friendly license terms.
