Industrial digital output software expansion for STM32Cube

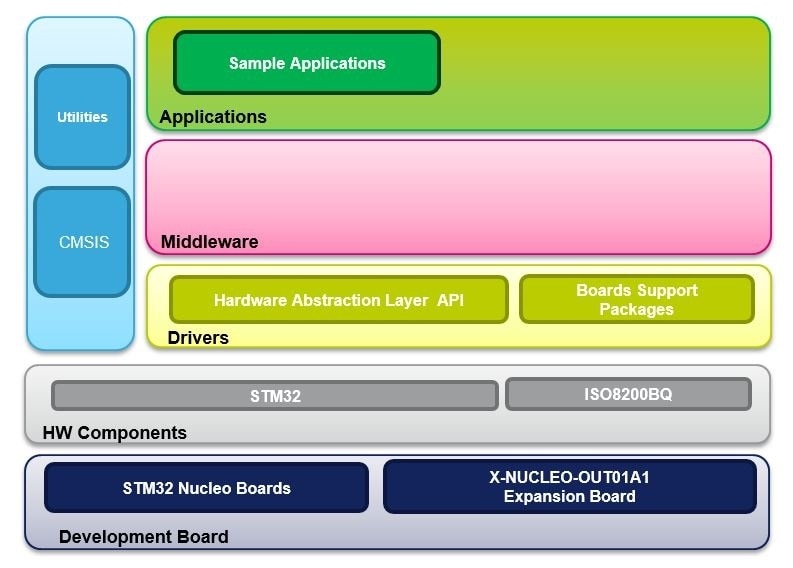

The X-CUBE-OUT1 expansion software for STM32Cube runs on STM32 with drivers for the ISO8200BQ galvanic isolated octal high-side smart power solid state-relay.

The software comes with sample implementations of the drivers running on the X-NUCLEO-OUT01A1 expansion board connected to a NUCLEO-F103RB, NUCLEO-F302R8 or NUCLEO-F401RE development board to kick-start development.

The expansion is built on STM32Cube software technology to ease portability across different STM32 microcontrollers.

Key Features

  • Complete software package to build industrial digital output applications cases based on the ISO8200BQ device
  • Driver layer for easy management of the ISO8200BQ device
  • Easy portability across different MCU families thanks to STM32Cube
  • Free user-friendly license terms
  • Sample implementation available on the X-NUCLEO-OUT01A1 expansion board when connected on NUCLEO-F103RB or NUCLEO-F302R8 or NUCLEO-F401RE
