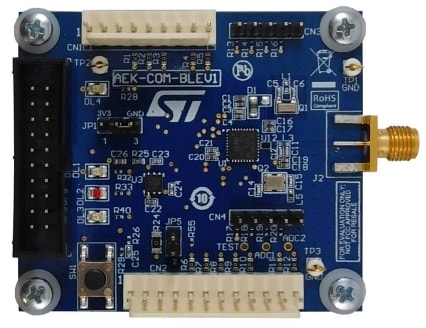

  • The AEK-COM-BLEV1 evaluation board is based on the BlueNRG-1 low power Bluetooth® smart system on chip, compliant with the Bluetooth® specification.

    The evaluation board can be connected to a microcontroller via a 12-pin or alternative 9-pin male connector for SPI, serial interface or I²C communication.
    The BlueNRG-1 device is supplied with the network processor software loaded and ready to process Bluetooth commands. The software image (DTM_UART.hex) is available in the BlueNRG design kit.
    The STSW-AEKBLE firmware provides a straightforward demonstration of the AEK-COM-BLEV1 board functionality used in conjunction with the AEK-MCU-C4MLIT1 evaluation board with microcontroller.

    Key Features

    • Based on the BlueNRG-1 Bluetooth low energy system on chip
    • Associated STSW-BLUENRG-DK (BlueNRG-1 development kit software package) including firmware and documentation
    • Up to +8 dBm available output power (at antenna connector)
    • Excellent receiver sensitivity (-88 dBm)
    • Very low power consumption: 7.7 mA RX and 8.2 mA TX at +0 dBm
    • Bluetooth® low energy compliant: supports master, slave and simultaneous master-and-slave roles
    • New integrated balun BALF-NRG-02D3 which integrates a matching network and harmonics filter
    • 3 user LEDs
    • JTAG debug connector
    • Pre-programmed as network processor
    • Board size: 60 x 40 mm.
    • Part of the AutoDevKit™ initiative
    • RoHS and WEEE compliant
