Product overview

Description

The AEKD-USBTYPEC1 evaluation kit is designed to let you test the USB Power Delivery protocol stack implemented on the ASIL-B automotive grade 32-bit Power Architecture^® microcontroller SPC58 C (Chorus) line (from 1 to 10 MB flash, single or multi-core, including ISO CAN FD and Ethernet peripherals).

All features

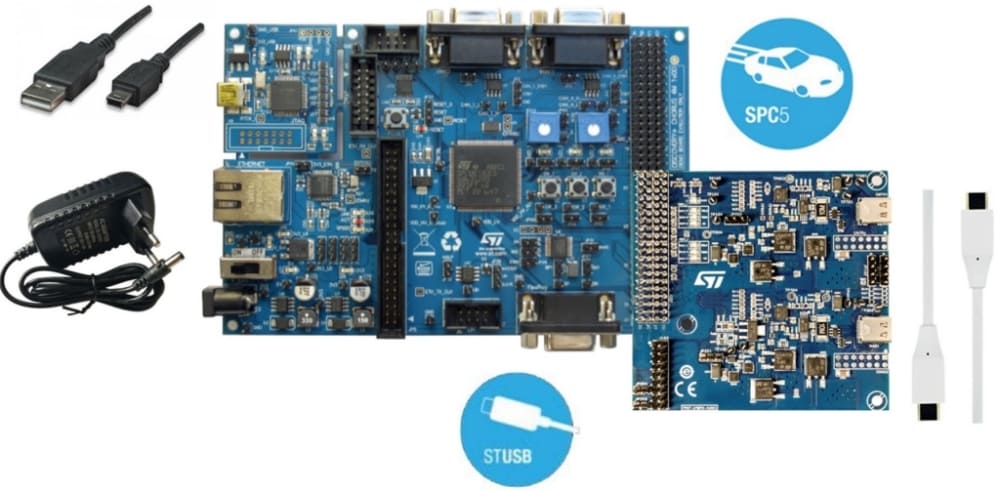

Kit consisting of two boards:

Dual-port USB Type-C function board (AEK-USB-2TYPEC1)

SPC58 Chorus discovery board (SPC58EC-DISP)

USB Power Delivery software stack pre-loaded on SPC58 discovery board

Power board connector on USB function board

Power Data Objects (PDO)

5 V 500 mA available without external power board

other PDOs possible if a compatible power board (not included) is connected

Downloadable (STSW-USB2TYPEC1) compiled flash image firmware

Portion of connector on SPC58 Chorus discovery board available for extensions as part of the AutoDevKit development initiative

All key ST components are qualified automotive grade

RoHS compliant
Read more Read less
