B-U585I-IOT02A

Active

Discovery kit for IoT node with STM32U5 series

Download databrief
Overview
Online design
Sample & Buy
Solutions
Documentation
CAD Resources
Tools & Software
Quality & Reliability
Partner products
Sales Briefcase

Product overview

Description

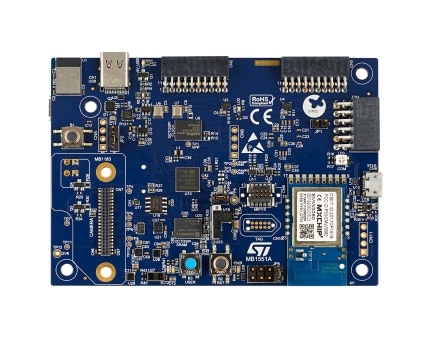

The B-U585I-IOT02A Discovery kit provides a complete demonstration and development platform for the STM32U585AI microcontroller, featuring an Arm® Cortex®-M33 core with Arm® TrustZone® and Armv8-M mainline security extension, 2 Mbytes of Flash memory and 786 Kbytes of SRAM, as well as smart peripheral resources. This Discovery kit enables a wide diversity of applications by exploiting low-power communication, multiway sensing, and direct connection to cloud servers.
It includes Wi-Fi® and Bluetooth® modules, as well as microphones, temperature and humidity, magnetometer, accelerometer and gyroscope, pressure, time-of-flight, and gesture-detection sensors.
The support for ARDUINO® Uno V3, STMod+ and Pmod™ connectivity provides unlimited expansion capabilities with a large choice of specialized add-on boards.
For even more user-friendliness, the on-board STLINK-V3E debugger provides out-of-the-box loading and debugging capabilities, as well as a USB Virtual COM port bridge.
The B-U585I-IOT02A Discovery kit leverages the STM32U5 Series key assets to enable prototyping for a variety of wearable or sensor applications in fitness, metering, industrial or medical, with state-of-the-art energy efficiency and higher security.
  • All features

    • Ultra-low-power STM32U585AII6Q microcontroller based on the Arm® Cortex®-M33 core with Arm® TrustZone®, 2 Mbytes of Flash memory and 786 Kbytes of SRAM, and SMPS in UFBGA169 package
    • 512-Mbit Quad-SPI Flash memory, 64-Mbit Octo‑SPI PSRAM, 256-Kbit I2C EEPROM
    • USB FS, Sink and Source power, 2.5 W power capability
    • 802.11 b/g/n compliant Wi-Fi® module from MXCHIP
    • Bluetooth® Low Energy from STMicroelectronics
    • MEMS sensors from STMicroelectronics
      • 2 digital microphones
      • Relative humidity and temperature sensor
      • 3-axis magnetometer
      • 3D accelerometer and 3D gyroscope
      • Pressure sensor, 260-1260 hPa absolute digital output barometer
      • Time-of-flight and gesture-detection sensor
    • Ambient-light sensor
    • Authentication and security for peripherals and IoT devices from STMicroelectronics
    • 2 user LEDs
    • User push-button
    • Reset push-button
    • Board connectors
      • USB Type-C®
      • ARDUINO® Uno V3 expansion connectors
      • Camera module expansion connector
      • 2× STMod+ expansion connectors
      • Pmod™ expansion connector
    • Flexible power-supply options: ST-LINK, USB VBUS, or external sources
    • On-board STLINK-V3E debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port
    • Comprehensive free software libraries and examples available with the STM32CubeU5 MCU Package
    • Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench®, MDK-ARM, STM32CubeIDE, and Mbed Studio

You might also like...

All tools & software

    • Part number
      Status
      Description
      Type
      Supplier

      STM32CubeU5

      Active

      STM32Cube MCU Package for STM32U5 series (HAL, Low-Layer APIs and CMSIS, USB, File system, RTOS, TF-M - coming with examples running on ST boards)

      STM32Cube MCU & MPU Packages ST
      STM32CubeU5

      Description:

      STM32Cube MCU Package for STM32U5 series (HAL, Low-Layer APIs and CMSIS, USB, File system, RTOS, TF-M - coming with examples running on ST boards)
    • Part number
      Status
      Description
      Type
      Supplier

      ST-LINK-SERVER

      Active

      ST-LINK server software module

      STM32 Performance and Debuggers ST
      ST-LINK-SERVER

      Description:

      ST-LINK server software module

      STM32CubeProg

      Active

      STM32CubeProgrammer software for all STM32

      STM32 Programmers ST
      STM32CubeProg

      Description:

      STM32CubeProgrammer software for all STM32

      STSW-LINK007

      Active

      ST-LINK, ST-LINK/V2, ST-LINK/V2-1, STLINK-V3 boards firmware upgrade

      STM32 Programmers ST
      STSW-LINK007

      Description:

      ST-LINK, ST-LINK/V2, ST-LINK/V2-1, STLINK-V3 boards firmware upgrade

      STSW-LINK009

      Active

      ST-LINK, ST-LINK/V2, ST-LINK/V2-1, STLINK-V3 USB driver signed for Windows7, Windows8, Windows10

      STM32 Utilities ST
      STSW-LINK009

      Description:

      ST-LINK, ST-LINK/V2, ST-LINK/V2-1, STLINK-V3 USB driver signed for Windows7, Windows8, Windows10

      X-WIFI-EMW3080B

      Active

      WiFi firmware update for MXCHIP EMW3080B on STM32 boards

      STM32 Utilities MXCHIP
      X-WIFI-EMW3080B

      Description:

      WiFi firmware update for MXCHIP EMW3080B on STM32 boards

Quality and Reliability

Part Number Marketing Status RoHS Compliance Grade Material Declaration**
B-U585I-IOT02A
Active
Ecopack1

B-U585I-IOT02A

Package:

Ecopack1

Material Declaration**:

Marketing Status

Active

RoHS Compliance Grade

Ecopack1

(**) The Material Declaration forms available on st.com may be generic documents based on the most commonly used package within a package family. For this reason, they may not be 100% accurate for a specific device. Please contact our sales support for information on specific devices.

Sample & Buy

Part Number
Order from Distributors
Order from ST
Core Product
Marketing Status
Supplier
ECCN (US)
ECCN (EU)
Specific features
Country of Origin
WEEE Compliant
Budgetary Price (US$)*/Qty
B-U585I-IOT02A Available at 3 distributors

Distributor availability ofB-U585I-IOT02A

Distributor Name
Region Stock Min. Order Third party link
DIGIKEY WORLDWIDE 274 1 Buy from Distributor
AVNET AMERICA 50 0 Buy from Distributor
Newark Element14 AMERICA 1 0 Buy from Distributor

Distributor reported inventory date: 2021-11-22

Distributor Name

DIGIKEY

Stock

274

Min.Order

1

Region

WORLDWIDE Buy from Distributor

AVNET

Stock

50

Min.Order

0

Region

AMERICA Buy from Distributor

Newark Element14

Stock

1

Min.Order

0

Region

AMERICA Buy from Distributor

Distributor reported inventory date: 2021-11-22

STM32U585AI
Active
ST 5A992C 5A002A4 - TUNISIA true 65.0 / 1

B-U585I-IOT02A

Core Product

STM32U585AI

Marketing Status

Active

Budgetary Price (US$)*/Qty

65.0 / 1

Distributor availability ofB-U585I-IOT02A

Distributor Name
Region Stock Min. Order Third party link
DIGIKEY WORLDWIDE 274 1 Buy from Distributor
AVNET AMERICA 50 0 Buy from Distributor
Newark Element14 AMERICA 1 0 Buy from Distributor

Distributor reported inventory date: 2021-11-22

Distributor Name

DIGIKEY

Stock

274

Min.Order

1

Region

WORLDWIDE Buy from Distributor

AVNET

Stock

50

Min.Order

0

Region

AMERICA Buy from Distributor

Newark Element14

Stock

1

Min.Order

0

Region

AMERICA Buy from Distributor

Distributor reported inventory date: 2021-11-22

Supplier

ST

ECCN (US)

5A992C

ECCN (EU)

5A002A4

Budgetary Price (US$)* / Qty

65.0 / 1

Specific features

-

Country of Origin

TUNISIA

WEEE Compliant

true

(*) Suggested Resale Price (USD) per defined quantity for BUDGETARY USE ONLY. For quotes, prices in local currency, please contact your local ST Sales Office or our Distributors
