Evaluation board for L9945 engine management system

Download databrief

Order from our eStore and our distributors

Buy now
Overview
Tools & Software
Resources
Solutions
Quality & Reliability
Sales Briefcase
eDesignSuite
Get Started
Sample & Buy
Partner products

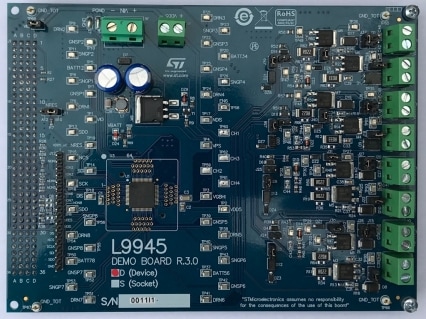

  • The EVAL- L9945 is an evaluation board designed to evaluate L9945, a smart power device designed by STMicroelectronics in advanced BCD technology.

    L9945 is a flexible high-side/ low-side configurable pre-driver able to drive both NMOS and PMOS. It is possible to configure the device as independent 8 high-side and low-side pre-driver or as 2 H-Bridge pre-driver or 2 pick and hold pre-driver by using SPI configuration and jumper on the board.
    All channels are protected against short circuit, over current and over-temperature conditions.
    The board can be connected to the SPC563M-DISP, the Discovery+ board developed for the SPC563M64L.

    Key Features

    • Voltage min/max: 3.8 V to 36 V.
    • 8-channel configurable MOSFET pre-driver:
      • High-side (N-channel and P-channel MOS)
      • Low-side (N-channel MOS)
      • H-bridge (up to 2 H-bridge)
      • Peak & Hold (2 loads)
    • Device registers setting and the full diagnostic are available through SPI.
    • Access to all relevant pins by test points.
    • Input signal connector compatible with the SPC563M-DISP (SPC563M64L Discovery+ evaluation board).
    • Possibility to connect a generic microcontroller board by using a simple adapter.

Sample & Buy

Part Number
Marketing Status
Budgetary Price (US$)*
Quantity
ECCN (US)
Country of Origin
Order from Distributors
Order from ST
EVAL-L9945
Active
137.0 1 EAR99 - Check Availability

Distributor availability ofEVAL-L9945

Distributor Name
Region Stock Min. Order Third party link
DIGIKEY WORLDWIDE 4 1 Order Now
MOUSER WORLDWIDE 5 1 Order Now

Distributor reported inventory date: 2019-07-16

Distributor Name

DIGIKEY

Stock

4

Min.Order

1

Region

WORLDWIDE Order Now

MOUSER

Stock

5

Min.Order

1

Region

WORLDWIDE Order Now

Distributor reported inventory date: 2019-07-16

Buy now

EVAL-L9945

Marketing Status

Active

Unit Price (US$)

137

Unit Price (US$)

137.0*

Distributor availability ofEVAL-L9945

Distributor Name
Region Stock Min. Order Third party link
DIGIKEY WORLDWIDE 4 1 Order Now
MOUSER WORLDWIDE 5 1 Order Now

Distributor reported inventory date: 2019-07-16

Distributor Name

DIGIKEY

Stock

4

Min.Order

1

Region

WORLDWIDE Order Now

MOUSER

Stock

5

Min.Order

1

Region

WORLDWIDE Order Now

Distributor reported inventory date: 2019-07-16

Quantity

1

ECCN (US)

EAR99

Country of Origin

-

(*) Suggested Resale Price per unit (USD) for BUDGETARY USE ONLY. For quotes, prices in local currency, please contact your local ST Sales Office  or our Distributors

Recommended for you

Related Products

Automotive Analog and Power

Embedded Software

    • Part Number

      EVAL-L9945 Graphical User Interface

00 Files selected for download

Technical Documentation

    • Description Version Size Action
      DB3412
      EVAL-L9945 evaluation board
      3.0
      139.58 KB
      PDF
      DB3412

      EVAL-L9945 evaluation board

    • Description Version Size Action
      UM2560
      EVAL-L9945 user manual
      1.0
      1.49 MB
      PDF
      UM2296
      STSW-L9945 graphic user interface for EVAL-L9945
      2.0
      1.52 MB
      PDF
      UM2560

      EVAL-L9945 user manual

      UM2296

      STSW-L9945 graphic user interface for EVAL-L9945

Hardware Resources

    • Description Version Size Action
      EVAL-L9945 LAYOUT 1.0
      11.36 MB
      ZIP

      EVAL-L9945 LAYOUT

    • Description Version Size Action
      EVAL-L9945 Bill of Material 1.0
      70.05 KB
      PDF

      EVAL-L9945 Bill of Material

    • Description Version Size Action
      EVAL-L9945 Schematic 1.0
      392.61 KB
      PDF

      EVAL-L9945 Schematic

Legal

    • Description Version Size Action
      Evaluation products license agreement 1.6
      74.12 KB
      PDF

      Evaluation products license agreement

Part Number Marketing Status RoHS Compliance Grade WEEE Compliant Material Declaration**
EVAL-L9945
Active
Not compliant -

EVAL-L9945

Package:

Not compliant

Material Declaration**:

Marketing Status

Active

RoHS Compliance Grade

Not compliant

WEEE Compliant

-

(**) The Material Declaration forms available on st.com may be generic documents based on the most commonly used package within a package family. For this reason, they may not be 100% accurate for a specific device. Please contact our sales support for information on specific devices.
