Stepper motor driver mounting the L6208Q

Download databrief

This product is in stock in our e-store

Sample and buy
Overview
Tools & Software
Resources
Solutions
Quality & Reliability
Sales Briefcase
eDesignSuite
Get Started
Sample & Buy
Partner products

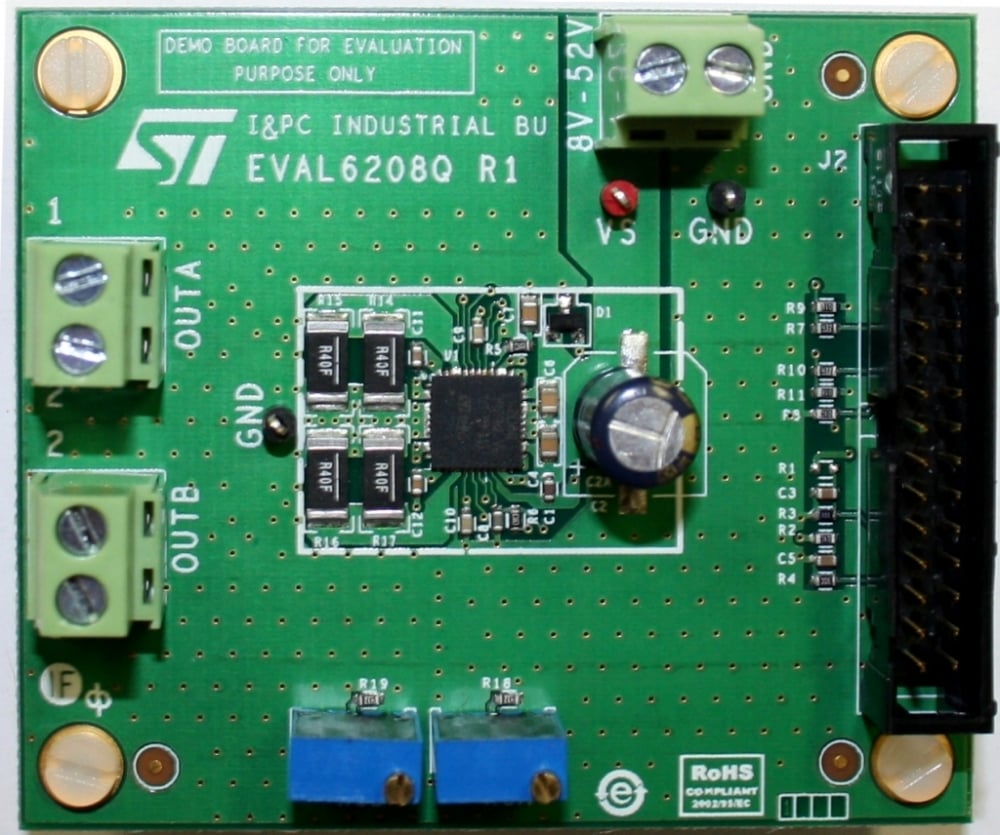

  • The EVAL6208Q device is a stepper motor driver board allowing the user to test the L6208Q functions.

    The board can be driven using the STEVAL-PCC009V2 demonstration board and the PractiSPIN 2 evaluation software.

    Key Features

    • Voltage range from 8 to 52 V
    • Phase current up to 2.5 Ar.m.s.
    • Adjustable PWM current control OFF-time
    • Logic inputs 5 V / 3.3 V compliant
    • Small application footprint with high thermal performance
    • Suitable for use in combination with PractiSPIN™ 2 software
