EVAL6494L

Active

Demonstration board for L6494L gate driver

Download databrief Order Direct
Overview
Online design
Sample & Buy
Solutions
Documentation
CAD Resources
Tools & Software
Quality & Reliability
Partner products
Sales Briefcase

Product overview

Description

The L6494L is a high voltage device manufactured with the BCD6 “OFF-LINE” technology. It is a single-chip half-bridge gate driver for N-channel power MOSFETs or IGBTs. Both device outputs can sink 2.5 A and source 2 A, making the L6494L particularly suited for medium and high capacity power MOSFETs\IGBTs.
The integrated bootstrap diode as well as all of the integrated features of this driver make the application's PCB design simpler and more compact, and help reducing the overall bill of material.

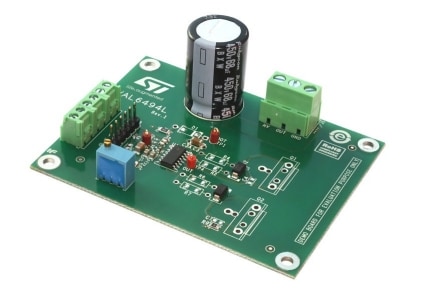

The EVAL6494L board allows evaluating all of the L6494L features while driving a power switch in the TO-220 or TO-247 package.
The board allows easily to select and modify the values of relevant external components in order to ease driver performance evaluation under different applicative conditions and fine pre-tuning of final application components.
  • All features

    • Driver current capability: 2 A source, 2.5 A sink
    • Integrated bootstrap diode
    • Single input and shutdown pin
    • Adjustable deadtime
    • 3.3 V, 5 V TTL/CMOS inputs with hysteresis
    • UVLO on both high-side and low-side sections
    • dV/dt immunity: 50 V/ns in full temperature range
    • Compact and simplified layout
    • Bill of material reduction
    • Flexible, easy and fast design

Quality and Reliability

Part Number Marketing Status Package Grade RoHS Compliance Grade WEEE Compliant Material Declaration**
EVAL6494L
Active
CARD Industrial Ecopack1 -

EVAL6494L

Package:

CARD

Material Declaration**:

Marketing Status

Active

Package

CARD

Grade

Industrial

RoHS Compliance Grade

Ecopack1

(**) The Material Declaration forms available on st.com may be generic documents based on the most commonly used package within a package family. For this reason, they may not be 100% accurate for a specific device. Please contact our sales support for information on specific devices.

Sample & Buy

Part Number
Order from Distributors
Order from ST
Core Product
Marketing Status
Supplier
ECCN (US)
ECCN (EU)
Country of Origin
Budgetary Price (US$)*/Qty
EVAL6494L Available at 4 distributors

Distributor availability ofEVAL6494L

Distributor Name
Region Stock Min. Order Third party link
DIGIKEY WORLDWIDE 31 1 Buy from Distributor
RS COMPONENTS EUROPE 10 1 Buy from Distributor
MOUSER WORLDWIDE 19 1 Buy from Distributor
Farnell Element14 EUROPE 1 1 Buy from Distributor

Distributor reported inventory date: 2021-11-28

Distributor Name

DIGIKEY

Stock

31

Min.Order

1

Region

WORLDWIDE Buy from Distributor

RS COMPONENTS

Stock

10

Min.Order

1

MOUSER

Stock

19

Min.Order

1

Region

WORLDWIDE Buy from Distributor

Farnell Element14

Stock

1

Min.Order

1

Distributor reported inventory date: 2021-11-28

Buy Direct L6494L
Active
ST EAR99 NEC ITALY 26.62 / 1

EVAL6494L

Core Product

L6494L

Marketing Status

Active

Budgetary Price (US$)*/Qty

26.62 / 1

Distributor availability ofEVAL6494L

Distributor Name
Region Stock Min. Order Third party link
DIGIKEY WORLDWIDE 31 1 Buy from Distributor
RS COMPONENTS EUROPE 10 1 Buy from Distributor
MOUSER WORLDWIDE 19 1 Buy from Distributor
Farnell Element14 EUROPE 1 1 Buy from Distributor

Distributor reported inventory date: 2021-11-28

Distributor Name

DIGIKEY

Stock

31

Min.Order

1

Region

WORLDWIDE Buy from Distributor

RS COMPONENTS

Stock

10

Min.Order

1

MOUSER

Stock

19

Min.Order

1

Region

WORLDWIDE Buy from Distributor

Farnell Element14

Stock

1

Min.Order

1

Distributor reported inventory date: 2021-11-28

Supplier

ST

ECCN (US)

EAR99

ECCN (EU)

NEC

Budgetary Price (US$)* / Qty

26.62 / 1

Country of Origin

ITALY

(*) Suggested Resale Price (USD) per defined quantity for BUDGETARY USE ONLY. For quotes, prices in local currency, please contact your local ST Sales Office or our Distributors
