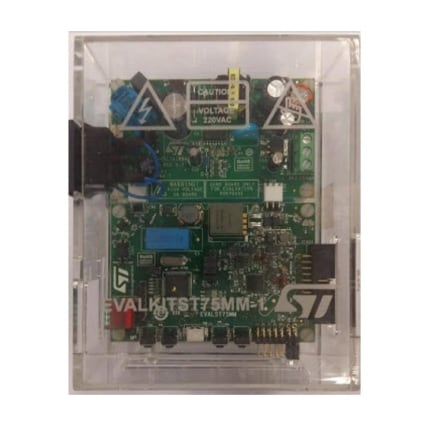

  • Built around the ST75MM power line networking system-on-chip in compliance with the METERS AND MORE standard, the EVALKITST75MM-1 embeds all the additional functions required for a turnkey power line communication node: the AC power supply based on the ALTAIR4-900 and the STM32 microcontroller to either control the system as a stand-alone application or to connect the EVALKITST75MM-1 to an external host.

    The typical application environment consists of two or more EVALKITST75MM-1 devices connected to the same mains line, to evaluate the performance in a communication system.

    Key Features

    • METERS AND MORE compliant power line communication (PLC) demonstration and development kit based on the ST75MM system-on-chip
    • Suitable for PLC evaluation over AC mains network
    • Flexible two-board architecture:
      • EVALST75MM-1: PLC board based on the ST75MM power line networking system-on-chip compliant to the METERS AND MORE standard
      • EVLALTAIR900-M1: wide-range input voltage, 7.5 W power supply board based on the ALTAIR04-900 quasi-resonant current-mode SMPS controller
    • STM32 on-board microcontroller to manage the ST75MM device and to facilitate development of a stand-alone PLC node
    • USB and JTAG direct access to the STM32 host for programming and usage
    • Suitable for CENELEC EN50065 compliant applications in the range of 95 - 148.5 kHz

Sample & Buy

Part Number
Core Product
Marketing Status
Budgetary Price (US$)*
Quantity
ECCN (US)
Country of Origin
Order from Distributors
Order from ST
EVALKITST75MM-1 -
NRND
200 1 5A992C - No availability of distributors reported, please contact our sales office

EVALKITST75MM-1

Core Product

-

Marketing Status

NRND

Unit Price (US$)

200.0*

Unit Price (US$)

200

Quantity

1

ECCN (US)

5A992C

Country of Origin

-

(*) Suggested Resale Price per unit (USD) for BUDGETARY USE ONLY. For quotes, prices in local currency, please contact your local ST Sales Office  or our Distributors
