High-voltage evaluation board for the PWD13F60

Download databrief

Order from our eStore and our distributors

Buy now
Overview
Tools & Software
Resources
Solutions
Quality & Reliability
Sales Briefcase
eDesignSuite
Get Started
Sample & Buy
Partner products
  • The PWD13F60 is a high density power driver integrating gate drivers and four N-channel power MOSFETs in dual half-bridge configuration.

    The integrated power MOSFETs have a low RDS(on) of 320 mΩ and 600 V drain-source breakdown voltage, while the embedded gate drivers high-side can be easily supplied by the integrated bootstrap diode. The high integration of the device allows loads in a tiny space to be driven efficiently.
    The PWD13F60 accepts a supply voltage (VCC) extending over a wide range and is protected by a low voltage UVLO detection on the supply voltage.
    The input pin extended range allows easy interfacing with microcontrollers, DSP units or Hall effect sensors.

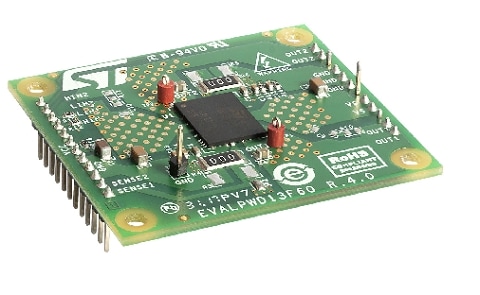

    The EVALPWD13F60 is 48 x 53 mm wide, FR-4 PCB resulting in an Rth(J-A) of 18 °C/W, capable to drive loads up to 2 ARMS, without forced airflow cooling.
    Both controlling and power signals are available on pin strip for easy connection to customer's board.

    Key Features

    • Power system-in-package integrating gate drivers and high-voltage power MOSFETs:
      • Low RDS(on) = 320 mΩ
      • BVDSS = 600 V
    • Suitable for operating as:
      • Full-bridge
      • Dual independent half-bridges
    • Wide input supply voltage down to 6.5 V
    • UVLO protection on supply voltage
    • 3.3 V to 15 V compatible inputs with hysteresis and pull-down
    • Interlocking function to prevent cross conduction
    • Internal bootstrap diodes
    • QFN (10x13 mm) package
    • Very compact layout
    • RoHS compliant
