EVALSTWBC-EP

Active

Qi MP-A15 15W wireless charger TX evaluation kit based on STWBC-EP

Download databrief

Order from our distributors

Check availability
Overview
Tools & Software
Resources
Solutions
Quality & Reliability
Sales Briefcase
eDesignSuite
Get Started
Sample & Buy
Partner products

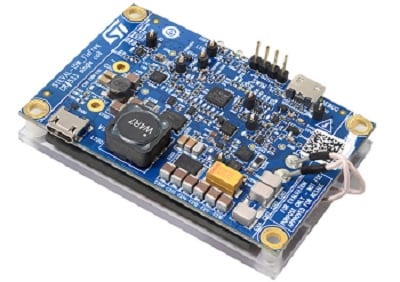

  • The EVALSTWBC-EP is a wireless battery charger TX evaluation kit including EVALSTWBC-EP demo-board and EVALWBCDNGV1 USB-UART dongle, designed for charging devices such as smartphones or tablets where high power levels are required.

    The evaluation board supports wireless battery charging of Qi-compliant devices up to 15W. It also supports proprietary fast charging modes up to 10W.
    The EVALSTWBC-EP transmitter is based on the STWBC-EP and features a cost-effective half bridge topology offering external interface via UART. The EVALSTWBC-EP solution provides a complete kit, which includes demo board, its firmware, a graphical interface for debug, the schematics, layout files and bill of materials.
    Tools for EVALSTWBC-EP are available on www.st.com and allow users to access runtime information such as power delivered, regulation error and protocol status. Parameters can also be adjusted with these tools

    Key Features

    • STWBC-EP digital controller
    • MP-A15 fixed frequency topology
    • 15W output power
    • Flexible input voltage: 5V to 20V from USB connector
    • 5W mode when connected to 5V USB input
    • WPC Qi1.2.4 standard compliant
    • Robust demodulation algorithm, with triple path (V, I, f)
    • Foreign Object Detection (FOD)
    • Active presence detection
    • UART protocol to control and monitor the system
    • Complete reference design (evaluation board, schematics, PCB layout, firmware and tools)
    • 2 layers PCB
    • Low standby power consumption
    • Flash memory based
    • CE certified
    • ROHS compliant

Sample & Buy

Part Number
Core Product
Marketing Status
Budgetary Price (US$)*
Quantity
ECCN (US)
Country of Origin
Board production status
Order from Distributors
Order from ST
EVALSTWBC-EP STWBC-EP
Active
99 1 3A991A2 - - Check Availability

Distributor availability ofEVALSTWBC-EP

Distributor Name
Region Stock Min. Order Third party link
AVNET AMERICA 3 0 Order Now
FUTURE WORLDWIDE 6 1 Order Now
ARROW EUROPE 20 0 Order Now
Farnell Element14 EUROPE 2 1 Order Now

Distributor reported inventory date: 2020-01-24

Distributor Name

AVNET

Stock

3

Min.Order

0

Region

AMERICA Order Now

FUTURE

Stock

6

Min.Order

1

Region

WORLDWIDE Order Now

ARROW

Stock

20

Min.Order

0

Region

EUROPE Order Now

Farnell Element14

Stock

2

Min.Order

1

Region

EUROPE Order Now

Distributor reported inventory date: 2020-01-24

EVALSTWBC-EP

Core Product

STWBC-EP

Marketing Status

Active

Unit Price (US$)

99.0*

Distributor availability ofEVALSTWBC-EP

Distributor Name
Region Stock Min. Order Third party link
AVNET AMERICA 3 0 Order Now
FUTURE WORLDWIDE 6 1 Order Now
ARROW EUROPE 20 0 Order Now
Farnell Element14 EUROPE 2 1 Order Now

Distributor reported inventory date: 2020-01-24

Distributor Name

AVNET

Stock

3

Min.Order

0

Region

AMERICA Order Now

FUTURE

Stock

6

Min.Order

1

Region

WORLDWIDE Order Now

ARROW

Stock

20

Min.Order

0

Region

EUROPE Order Now

Farnell Element14

Stock

2

Min.Order

1

Region

EUROPE Order Now

Distributor reported inventory date: 2020-01-24

Unit Price (US$)

99

Quantity

1

ECCN (US)

3A991A2

Country of Origin

-

Board production status

-

(*) Suggested Resale Price per unit (USD) for BUDGETARY USE ONLY. For quotes, prices in local currency, please contact your local ST Sales Office  or our Distributors

Recommended for you

Embedded Software

    • Part Number

      Firmware for EVALSTWBC-EP 15W single coil Qi MP-A15 wireless power TX evaluation kit based on STBWC-EP

00 Files selected for download

Technical Documentation

    • Description Version Size Action
      DB3897
      Qi MP-A15 15W wireless charger TX evaluation kit based on STWBC-EP
      1.0
      2.2 MB
      PDF
      DB3897

      Qi MP-A15 15W wireless charger TX evaluation kit based on STWBC-EP

    • Description Version Size Action
      UM2584
      15W single coil fixed frequency Qi wireless charger Tx evaluation kit based on STWBC-EP
      1.0
      16.64 MB
      PDF
      UM2588
      Firmware for the EVALSTWBC-EP 15 W single coil Qi MP-A15 wireless power TX evaluation kit
      2.0
      430.37 KB
      PDF
      UM2584

      15W single coil fixed frequency Qi wireless charger Tx evaluation kit based on STWBC-EP

      UM2588

      Firmware for the EVALSTWBC-EP 15 W single coil Qi MP-A15 wireless power TX evaluation kit

Hardware Resources

    • Description Version Size Action
      EVALSTWBC-EP BOM 1.0
      575.88 KB
      PDF

      EVALSTWBC-EP BOM

Publications and Collaterals

    • Description Version Size Action
      eDesignSuite-The smart way to design your application 1.0
      842.88 KB
      PDF

      eDesignSuite-The smart way to design your application

Legal

    • Description Version Size Action
      Evaluation products license agreement 1.6
      74.12 KB
      PDF

      Evaluation products license agreement

Part Number Marketing Status Package Grade RoHS Compliance Grade WEEE Compliant Material Declaration**
EVALSTWBC-EP
Active
CARD Industrial Ecopack1 -

EVALSTWBC-EP

Package:

CARD

Material Declaration**:

Marketing Status

Active

Package

CARD

Grade

Industrial

RoHS Compliance Grade

Ecopack1

(**) The Material Declaration forms available on st.com may be generic documents based on the most commonly used package within a package family. For this reason, they may not be 100% accurate for a specific device. Please contact our sales support for information on specific devices.
