EVSPIN32F06Q1S1

Active

3-phase inverter based on STSPIN32F0601

Download databrief Order Direct
Overview
Online design
Sample & Buy
Solutions
Documentation
CAD Resources
Tools & Software
Quality & Reliability
Partner products
Sales Briefcase

Product overview

Description

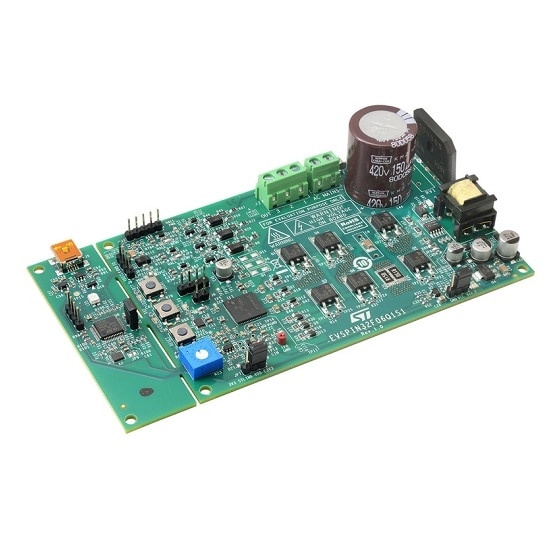

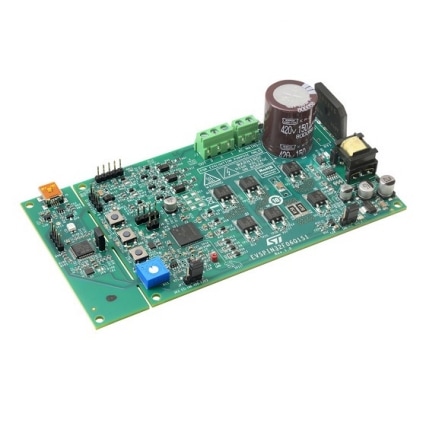

The EVSPIN32F06Q1S1 board is a 3-phase complete inverter based on the STSPIN32F0601 controller, which embeds a 3‑phase 600 V gate driver and a Cortex®-M0 STM32 MCU. The power stage features STGD6M65DF2 IGBTs, but can be populated with any IGBT or Power MOSFET in DPAK or powerFLAT 8x8 HV package. The board has a single-shunt sensing topology, and both FOC and 6‑step control algorithms in either sensored or sensorless mode can be implemented. This allows driving permanent magnet synchronous motors (PMSMs) and brushless DC (BLDC) motors.
The evaluation board is compatible with a wide range input voltage from 35 VAC (50 VDC) to 280 VAC (400 VDC), and includes a power supply stage with the VIPER06XS in flyback configuration to generate +15 V and +3.3 V supply voltage required by the application.
Debug and configuration of FW can be performed with standard STM32 tools through the detachable STLINK‑debugger. SWD and UART TX‑RX connectors are also available.
  • All features

    • Input voltage from 35 VAC (50 VDC) to 280 VAC (400 VDC)
    • STGD6M65DF2 IGBTs power stage featuring:
      • V(BR)CES = 650 V
      • VCE(sat) = 1.55 V @ IC = 6 A
    • Overcurrent threshold set to 5.5 Apeak
    • Dual footprint for IGBT/MOSFET package:
      • DPAK
      • PowerFlat 8x8 HV
    • Single-shunt current sensing, suitable for:
      • Sensored or sensorless 6-step algorithm
      • Sensored or sensorless single-shunt vector (FOC) algorithm
    • Smart shutdown overcurrent protection
    • Digital Hall sensors and encoder input
    • Bus voltage sensing
    • 15 V VCC and 3.3 V VDD supplies
    • Embedded ST-LINK/V2-1
    • Easy user interface with buttons and trimmer
    • RoHS compliant

You might also like...

Quality and Reliability

Part Number Marketing Status Package Grade RoHS Compliance Grade WEEE Compliant Material Declaration**
EVSPIN32F06Q1S1
Active
CARD Industrial Ecopack1 -

EVSPIN32F06Q1S1

Package:

CARD

Material Declaration**:

Marketing Status

Active

Package

CARD

Grade

Industrial

RoHS Compliance Grade

Ecopack1

(**) The Material Declaration forms available on st.com may be generic documents based on the most commonly used package within a package family. For this reason, they may not be 100% accurate for a specific device. Please contact our sales support for information on specific devices.

Sample & Buy

Part Number
Order from Distributors
Order from ST
Core Product
Marketing Status
Supplier
ECCN (US)
ECCN (EU)
Country of Origin
Budgetary Price (US$)*/Qty
EVSPIN32F06Q1S1 Available at 4 distributors

Distributor availability ofEVSPIN32F06Q1S1

Distributor Name
Region Stock Min. Order Third party link
DIGIKEY WORLDWIDE 7 1 Buy from Distributor
RS COMPONENTS EUROPE 9 1 Buy from Distributor
MOUSER WORLDWIDE 8 1 Buy from Distributor
Farnell Element14 EUROPE 18 1 Buy from Distributor

Distributor reported inventory date: 2021-10-19

Distributor Name

DIGIKEY

Stock

7

Min.Order

1

Region

WORLDWIDE Buy from Distributor

RS COMPONENTS

Stock

9

Min.Order

1

MOUSER

Stock

8

Min.Order

1

Region

WORLDWIDE Buy from Distributor

Farnell Element14

Stock

18

Min.Order

1

Distributor reported inventory date: 2021-10-19

Buy Direct -
Active
ST 3A991A2 NEC ITALY 78.65 / 1

EVSPIN32F06Q1S1

Core Product

-

Marketing Status

Active

Budgetary Price (US$)*/Qty

78.65 / 1

Distributor availability ofEVSPIN32F06Q1S1

Distributor Name
Region Stock Min. Order Third party link
DIGIKEY WORLDWIDE 7 1 Buy from Distributor
RS COMPONENTS EUROPE 9 1 Buy from Distributor
MOUSER WORLDWIDE 8 1 Buy from Distributor
Farnell Element14 EUROPE 18 1 Buy from Distributor

Distributor reported inventory date: 2021-10-19

Distributor Name

DIGIKEY

Stock

7

Min.Order

1

Region

WORLDWIDE Buy from Distributor

RS COMPONENTS

Stock

9

Min.Order

1

MOUSER

Stock

8

Min.Order

1

Region

WORLDWIDE Buy from Distributor

Farnell Element14

Stock

18

Min.Order

1

Distributor reported inventory date: 2021-10-19

Supplier

ST

ECCN (US)

3A991A2

ECCN (EU)

NEC

Budgetary Price (US$)* / Qty

78.65 / 1

Country of Origin

ITALY

(*) Suggested Resale Price (USD) per defined quantity for BUDGETARY USE ONLY. For quotes, prices in local currency, please contact your local ST Sales Office or our Distributors
