EVSTDRIVEG600DM

Active

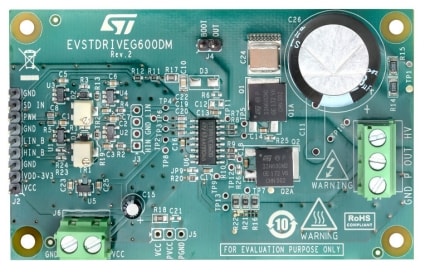

Demonstration board for STDRIVEG600 600V high-speed half-bridge gate driver with MDmesh DM2 Power MOSFET

Download databrief Order Direct
Overview
Online design
Sample & Buy
Solutions
Documentation
CAD Resources
Tools & Software
Quality & Reliability
Partner products
Sales Briefcase

Product overview

Description

The STDRIVEG600 is a high-speed half-bridge gate driver optimized to drive high-voltage N-channel power MOSFETs or enhanced mode GaN HEMTs. It features an integrated bootstrap diode and allows supplying external switches up to 20 V. The EVSTDRIVEG600DM board is easy to use and quick and adapt for evaluating the characteristics of STDRIVEG600 driving 600V MDmesh DM2 Power MOSFET with fast recovery diode.
It provides an on-board programmable dead time generator and a 3.3 V linear voltage regulator to supply external logic controllers like microcontrollers.
Spare footprints are also included to allow customizing the board for the final application, such as separate input signal or single PWM signal, use of optional external bootstrap diode, separate supply for VCC, PVCC or BOOT and the use of low-side shunt resistor for peak current mode topologies.
The EVSTDRIVEG600DM is 54 x 88 mm wide, FR-4 PCB resulting in 20 °C/W Rth(J‑A) in still air.
  • All features

    • Half-Bridge topology featuring 600V STDRIVEG600 gate driver
    • Equipped with 115 mΩ 600V MDmesh DM2 Power MOSFET STL33N60DM2 with fast recovery diode.
    • MOSFET in PowerFLAT 8x8 HV package with Kelvin source or alternative DPAK footprint.
    • HV bus up to 450V (capacitor rating limited)
    • 4.75 to 20 V VCC gate driver supply voltage
    • On-board adjustable deadtime generator to convert single PWM signal into independent high-side and low-side deadtimes.
    • Separated inputs with external deadtime can also be used
    • On-board 3.3V regulator for external circuitry supply
    • 20°C/W junction-to-ambient thermal resistance to evaluate large power topologies
    • Optional low-side shunt
    • RoHS compliant.

You might also like...

Quality and Reliability

Part Number Marketing Status Package Grade RoHS Compliance Grade WEEE Compliant Material Declaration**
EVSTDRIVEG600DM
Active
CARD Industrial Ecopack1 -

EVSTDRIVEG600DM

Package:

CARD

Material Declaration**:

Marketing Status

Active

Package

CARD

Grade

Industrial

RoHS Compliance Grade

Ecopack1

(**) The Material Declaration forms available on st.com may be generic documents based on the most commonly used package within a package family. For this reason, they may not be 100% accurate for a specific device. Please contact our sales support for information on specific devices.

Sample & Buy

Part Number
Order from Distributors
Order from ST
Core Product
Marketing Status
Supplier
ECCN (US)
ECCN (EU)
Country of Origin
Board production status
Budgetary Price (US$)*/Qty
EVSTDRIVEG600DM Available at 3 distributors

Distributor availability ofEVSTDRIVEG600DM

Distributor Name
Region Stock Min. Order Third party link
DIGIKEY WORLDWIDE 10 1 Buy from Distributor
MOUSER WORLDWIDE 10 1 Buy from Distributor
Farnell Element14 EUROPE 10 1 Buy from Distributor

Distributor reported inventory date: 2021-10-15

Distributor Name

DIGIKEY

Stock

10

Min.Order

1

Region

WORLDWIDE Buy from Distributor

MOUSER

Stock

10

Min.Order

1

Region

WORLDWIDE Buy from Distributor

Farnell Element14

Stock

10

Min.Order

1

Distributor reported inventory date: 2021-10-15

Buy Direct STDRIVEG600
Active
ST EAR99 NEC ITALY - 54.0 / 1

EVSTDRIVEG600DM

Core Product

STDRIVEG600

Marketing Status

Active

Budgetary Price (US$)*/Qty

54.0 / 1

Distributor availability ofEVSTDRIVEG600DM

Distributor Name
Region Stock Min. Order Third party link
DIGIKEY WORLDWIDE 10 1 Buy from Distributor
MOUSER WORLDWIDE 10 1 Buy from Distributor
Farnell Element14 EUROPE 10 1 Buy from Distributor

Distributor reported inventory date: 2021-10-15

Distributor Name

DIGIKEY

Stock

10

Min.Order

1

Region

WORLDWIDE Buy from Distributor

MOUSER

Stock

10

Min.Order

1

Region

WORLDWIDE Buy from Distributor

Farnell Element14

Stock

10

Min.Order

1

Distributor reported inventory date: 2021-10-15

Supplier

ST

ECCN (US)

EAR99

ECCN (EU)

NEC

Budgetary Price (US$)* / Qty

54.0 / 1

Country of Origin

ITALY

Board production status

-

(*) Suggested Resale Price (USD) per defined quantity for BUDGETARY USE ONLY. For quotes, prices in local currency, please contact your local ST Sales Office or our Distributors
