M24LR-DISCOVERY

Active

Discovery kit for CR95HF Reader & M24LR04E Dynamic NFC / RFID Tags with energy harvesting

Download databrief

Order from our eStore and our distributors

Buy now
Overview
Tools & Software
Resources
Solutions
Quality & Reliability
Sales Briefcase
eDesignSuite
Get Started
Sample & Buy
Partner products

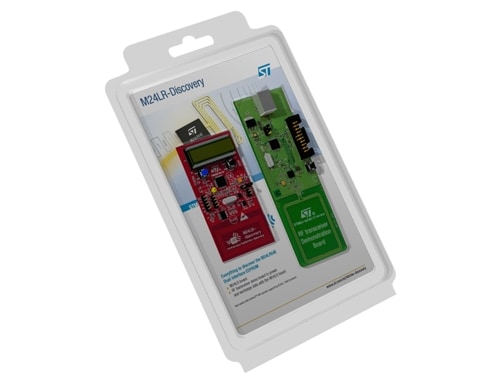

  • M24LR-DISCOVERY is a ready-to-use kit which features the M24LR04E-R Dual Interface EEPROM IC. It addresses a wide range of applications such as industrial or medical equipment and consumer electronics. This kit contains 2 different boards, as shown in the figure on cover page.

    The M24LR board is battery-less and is powered by RFID readers or NFC-enabled phones supporting ISO/IEC 15693.
    The RF transceiver board is an RFID reader demonstration board and is composed, among other parts, of a CR95HF (13.56 MHz multi-protocol contactless transceiver IC with SPI and UART serial access). This board has to be plugged in to a PC and comes with a demonstration software.
    The M24LR board also works with Android NFC phones supporting ISO/IEC 15693. An application called NfcV-Reader is available on Google Play. Performance may vary depending on NFC phone's RF management.

    Key Features

    • M24LR board
      • M24LR04E-RMN6T/2 Dual Interface EEPROM with I2C and ISO/IEC 15693 RF interfaces, 4 Kbits of EEPROM and password protection in SO8N package
      • STM8L152C6T6 8-bit microcontroller, with 8 Kbytes of Flash memory
      • STTS751-0WB3F, low-voltage digital temperature sensor
      • 20 x 40 mm inductive antenna etched on the PCB
      • Two function buttons (User and Reset)
      • SWIM connector for programming and debugging
      • I2C connectors
      • LCD (24 segments, 4 commons)
    • RF transceiver board
      • CR95HF-VMD5T 13.56 MHz multi-protocol contactless transceiver IC with SPI and UART serial access
      • STM32F103CB 32-bit microcontroller, with 128 Kbytes of Flash memory
      • 47 x 34 mm 13.56 MHz inductive antenna etched on PCB and associated circuitry
      • USB connector for communication with host PC and demonstration board powering

Sample & Buy

Part Number
Core Product
Marketing Status
Budgetary Price (US$)*
Quantity
ECCN (US)
Country of Origin
Order from Distributors
Order from ST
M24LR-DISCOVERY M24LR04E, CR95HF
Active
23.0 1 EAR99 - Check Availability

Distributor availability ofM24LR-DISCOVERY

Distributor Name
Region Stock Min. Order Third party link
DIGIKEY WORLDWIDE 175 1 Order Now
COMPEL EUROPE 5 1 Order Now
RS COMPONENTS EUROPE 144 1 Order Now
Newark Element14 AMERICA 24 0 Order Now
MOUSER WORLDWIDE 94 1 Order Now
Farnell Element14 EUROPE 400 1 Order Now

Distributor reported inventory date: 2019-12-12

Distributor Name

DIGIKEY

Stock

175

Min.Order

1

Region

WORLDWIDE Order Now

COMPEL

Stock

5

Min.Order

1

Region

EUROPE Order Now

RS COMPONENTS

Stock

144

Min.Order

1

Region

EUROPE Order Now

Newark Element14

Stock

24

Min.Order

0

Region

AMERICA Order Now

MOUSER

Stock

94

Min.Order

1

Region

WORLDWIDE Order Now

Farnell Element14

Stock

400

Min.Order

1

Region

EUROPE Order Now

Distributor reported inventory date: 2019-12-12

Buy now

M24LR-DISCOVERY

Core Product

M24LR04E, CR95HF

Marketing Status

Active

Unit Price (US$)

23.0*

Distributor availability ofM24LR-DISCOVERY

Distributor Name
Region Stock Min. Order Third party link
DIGIKEY WORLDWIDE 175 1 Order Now
COMPEL EUROPE 5 1 Order Now
RS COMPONENTS EUROPE 144 1 Order Now
Newark Element14 AMERICA 24 0 Order Now
MOUSER WORLDWIDE 94 1 Order Now
Farnell Element14 EUROPE 400 1 Order Now

Distributor reported inventory date: 2019-12-12

Distributor Name

DIGIKEY

Stock

175

Min.Order

1

Region

WORLDWIDE Order Now

COMPEL

Stock

5

Min.Order

1

Region

EUROPE Order Now

RS COMPONENTS

Stock

144

Min.Order

1

Region

EUROPE Order Now

Newark Element14

Stock

24

Min.Order

0

Region

AMERICA Order Now

MOUSER

Stock

94

Min.Order

1

Region

WORLDWIDE Order Now

Farnell Element14

Stock

400

Min.Order

1

Region

EUROPE Order Now

Distributor reported inventory date: 2019-12-12

Unit Price (US$)

23

Quantity

1

ECCN (US)

EAR99

Country of Origin

-

(*) Suggested Resale Price per unit (USD) for BUDGETARY USE ONLY. For quotes, prices in local currency, please contact your local ST Sales Office  or our Distributors

Recommended for you

Embedded Software

    • Part Number

      PC software executable for DEMO-CR95HF-A board (UM1084)

      PC software source code example for DEMO-CR95HF-A board (AN3954)

      CR95HF EMI filter calculation tool

      CR95HF C++ Library for Linux User

      PC software source code example for FEIG readers to be used with LRI & M24LR products (AN3224)

      Firmware for RF transceiver board included in the M24LR-DISCOVERY kit

      M24LR application software associated with RF transceiver board included in M24LR-discovery kit

      Firmware for M24LR board included in the M24LR-DISCOVERY kit

      Windows® PC software for ISO15693, ISO14443-A/B, NFC and industrial readers

      Software Development Kit for ST25 Tags and Dynamic Tags

00 Files selected for download

Technical Documentation

    • Description Version Size Action
      DB1628
      M24LR-DISCOVERY evaluation kit
      3.0
      345.76 KB
      PDF
      DB1628

      M24LR-DISCOVERY evaluation kit

    • Description Version Size Action
      AN4593
      CR95HF C++ Library for Linux User
      1.0
      1.65 MB
      PDF
      AN4327
      CR95HF transceiver antenna tuning circuit with EMI filter
      2.0
      721.13 KB
      PDF
      AN4593

      CR95HF C++ Library for Linux User

      AN4327

      CR95HF transceiver antenna tuning circuit with EMI filter

    • Description Version Size Action
      UM1589
      M24LR-DISCOVERY kit user guide
      3.0
      1.47 MB
      PDF
      UM1589

      M24LR-DISCOVERY kit user guide

Hardware Resources

    • Description Version Size Action
      Gerber files for M24LR board 2.0
      176.35 KB
      ZIP
      Gerber files for RF transceiver board
      206.22 KB
      ZIP

      Gerber files for M24LR board

      Gerber files for RF transceiver board

    • Description Version Size Action
      Bill of materials for M24LR board 1.0
      33.34 KB
      PDF
      Bill of materials for RF transceiver 1.0
      540.77 KB
      PDF

      Bill of materials for M24LR board

      Bill of materials for RF transceiver

    • Description Version Size Action
      M24LR board Schematic 1.0
      101.51 KB
      PDF
      RF transceiver board schematic 1.0
      134.93 KB
      PDF

      M24LR board Schematic

      RF transceiver board schematic

Publications and Collaterals

    • Description Version Size Action
      NFC / RFID Transceivers - 95HF series 1.0
      1.43 MB
      PDF
      FLM24LR640216 1.0
      1.61 MB
      PDF

      NFC / RFID Transceivers - 95HF series

      FLM24LR640216

Legal

    • Description Version Size Action
      Evaluation products license agreement 1.6
      74.12 KB
      PDF
      Open Reference Material License Agreement v5
      42.53 KB
      PDF

      Evaluation products license agreement

      Open Reference Material License Agreement v5

Part Number Marketing Status Package Grade RoHS Compliance Grade WEEE Compliant Material Declaration**
M24LR-DISCOVERY
Active
CONTRACTS Industrial Ecopack2 -

M24LR-DISCOVERY

Package:

CONTRACTS

Material Declaration**:

Marketing Status

Active

Package

CONTRACTS

Grade

Industrial

RoHS Compliance Grade

Ecopack2

(**) The Material Declaration forms available on st.com may be generic documents based on the most commonly used package within a package family. For this reason, they may not be 100% accurate for a specific device. Please contact our sales support for information on specific devices.
