NUCLEO-8L152R8

Active
Save to myST

STM8 Nucleo-64 development board with STM8L152R8 MCU, supports Arduino Uno and ST morpho connectivity

Download databrief
Order Direct
Overview
Sample & Buy
Solutions
Documentation
CAD Resources
Tools & Software
Quality & Reliability
eDesignSuite
Get Started
Partner products
Sales Briefcase

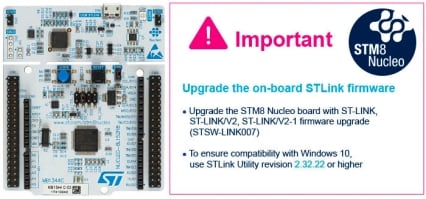

  • The STM8 Nucleo-64 boards provide an affordable and flexible way for users to try out new concepts and build prototypes with the LQFP64-packaged STM8 microcontroller, which provides various combinations of performance, power consumption and features.

    The Arduinoâ„¢ Uno V3 connectivity support, and the ST morpho headers allow easy expansion of the Nucleo open development platform functionality with a wide choice of specialized shields.
    The STM8 Nucleo-64 boards do not require any separate probe as they integrate the ST-LINK/V2-1 debugger and programmer.

    Key Features

    • STM8 microcontroller in LQFP64 package
    • Flash memory size:
      • 64 Kbytes for STM8L152R8T6
      • 128 Kbytes for STM8S208RBT6
    • 4 LEDs
      • USB communication (LD4)
      • 5 V STLINK (LD3)
      • User (LD2)
      • Power (LD1)
    • 2 push-buttons: USER and RESET
    • 32.768 kHz LSE crystal oscillator for the NUCLEO-8L152R8 only
    • Board expansion connectors:
      • Arduinoâ„¢ Uno V3
      • ST morpho extension pin headers for full access to all STM8 I/Os
    • Flexible board power-supply:
      • USB VBUS or external source (3.3 V, 5 V, 7 - 12 V)
      • Power management access point
    • On-board ST-LINK/V2-1 debugger and programmer with SWIM connector
    • USB re-enumeration capability. Three different interfaces supported: Virtual COM port, mass storage, debug port
    • Comprehensive free software STM8 libraries including a variety of software examples
    • Support of a wide choice of Integrated Development Environments (IDEs) including STMicroelectronics free STVD-STM8 (using Cosmic toolchain), IARâ„¢, Cosmic free IDEA
