Product overview
Description

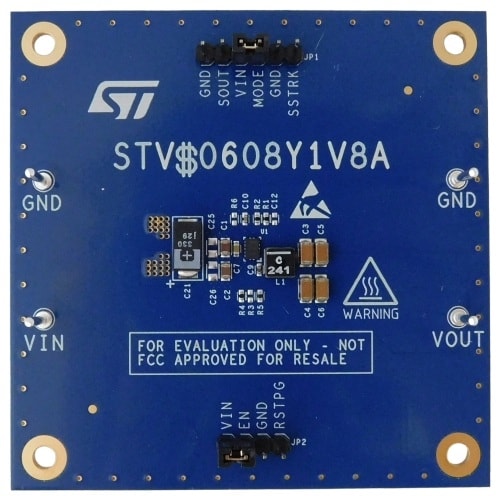

The STEVAL-0608Y1V8 product evaluation board is a step-down switching power supply based on the DCP0608Y regulator in a QFN11 2x3 mm package.
The programmed switching frequency is 2.25 MHz with dithering and it can be adjusted by applying an external clock on MODE/SIN pin or by changing the frequency programming resistor.
The DCP0608Y is a high efficiency monolithic step-down synchronous switching regulator designed to deliver up to 8 A continuous current.
The IC operates from 2.9 to 6 V input voltage. The DCP0608Y features low-resistance integrated N-channel MOSFETs and diode emulation working mode for optimum efficiency over all the loading range.
The integrated 0.6 V reference allows the regulation of output voltages with ±1.5 % accuracy over temperature variations.
The switching frequency is externally adjustable between 1.8 and 4 MHz. The soft-start duration can be adjusted with an external capacitor or the same SS/TRK pin can be used for output voltage sequencing while the RST/PGOOD pin provides real-time information on the output voltage.
-
All features
- 5 V (up to 6 V) operating input voltage
- Step-down (buck) conversion
- 1.8 V programmed output voltage
- 8 A DC max. output current
- 2.25 MHz selected switching frequency with dithering
- 3 ms programmed soft-start
- Dynamic low consumption mode to low noise mode selection
- Synchronization to external clock
- Internal compensation network
- Auto recovery overcurrent, overvoltage, and thermal protection
- RoHS and China RoHS compliant
- WEEE compliant (2012/19/UE RAEE II)
