STEVAL-1PS02B

Active

Evaluation board based on ST1PS02BQTR 400 mA nano-quiescent synchronous step-down converter with AUX switch

Download databrief Order Direct
Overview
Sample & Buy
Solutions
Documentation
CAD Resources
Tools & Software
Quality & Reliability
eDesignSuite
Get Started
Partner products
Sales Briefcase

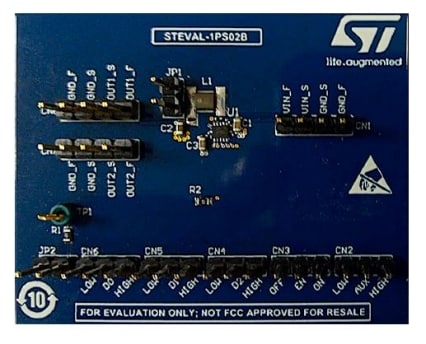

  • The STEVAL-1PS02B evaluation board demonstrates a smart converter design able to deliver up to 400 mA output current from a 1.8 V to 5.5 V input, with a dynamically adjustable1.8 V to 2.5 V output voltage.

    The board features the ST1PS02BQTR nano-quiescent miniaturized synchronous step-down converter which implements enhanced peak current control (PCC) and advanced design circuitry to minimize quiescent current. The device embeds a controlled load switch to supply a subsystem with same voltage rail.
    The board demonstrates how highly efficient conversion can be achieved with just the ST1PS02BQTR, a 2.2 µH inductor and two small capacitors.
    The board highlights key application benefits made possible by the ST1PS02BQTR, including high efficiency and small PCB size and thickness, and is ideal for power management solutions in wearable applications and fitness accessories, personal tracking monitors, smart watches, sports bands, energy harvesting, wireless sensors, industrial sensors, portable low power devices, single cell Li-Ion battery applications, and Bluetooth® low energy and Zigbee applications.
    The device used on this board is supplied in the thin TQFN12 (2.0x1.7 mm) package, but other packages are also available.

    Key Features

    • 1.8 V to 5.5 V input operating range
    • Up to 400 mA output current capability
    • Tiny external components: L=2.2 µH typ.
    • Dynamically selectable output voltages from 1.8 V to 2.5 V
    • Output voltage Power Good
    • Auxiliary load switch Vout2 (AUX control input)
    • WEEE and RoHS compliant (hardware only)

Recommended for you

Related Applications

Lighting and Controls

Quality and Reliability

Part Number Marketing Status Package Grade RoHS Compliance Grade WEEE Compliant Material Declaration**
STEVAL-1PS02B
Active
CARD Industrial Ecopack2 Yes

STEVAL-1PS02B

Package:

CARD

Material Declaration**:

Marketing Status

Active

Package

CARD

Grade

Industrial

RoHS Compliance Grade

Ecopack2

(**) The Material Declaration forms available on st.com may be generic documents based on the most commonly used package within a package family. For this reason, they may not be 100% accurate for a specific device. Please contact our sales support for information on specific devices.

Sample & Buy

Part Number
Order from Distributors
Order from ST
Core Product
Marketing Status
Supplier
ECCN (US)
ECCN (EU)
Country of Origin
Board production status
Budgetary Price (US$)*/Qty
STEVAL-1PS02B Available at 3 distributors

Distributor availability ofSTEVAL-1PS02B

Distributor Name
Region Stock Min. Order Third party link
DIGIKEY WORLDWIDE 8 1 Order Now
MOUSER WORLDWIDE 10 1 Order Now
Farnell Element14 EUROPE 12 1 Order Now

Distributor reported inventory date: 2020-11-25

Distributor Name

DIGIKEY

Stock

8

Min.Order

1

Region

WORLDWIDE Order Now

MOUSER

Stock

10

Min.Order

1

Region

WORLDWIDE Order Now

Farnell Element14

Stock

12

Min.Order

1

Region

EUROPE Order Now

Distributor reported inventory date: 2020-11-25

Buy Direct ST1PS02BQTR
Active
ST EAR99 NEC ITALY - 23.0 / 1

STEVAL-1PS02B

Core Product

ST1PS02BQTR

Marketing Status

Active

Budgetary Price (US$)*/Qty

23.0 / 1

Distributor availability ofSTEVAL-1PS02B

Distributor Name
Region Stock Min. Order Third party link
DIGIKEY WORLDWIDE 8 1 Order Now
MOUSER WORLDWIDE 10 1 Order Now
Farnell Element14 EUROPE 12 1 Order Now

Distributor reported inventory date: 2020-11-25

Distributor Name

DIGIKEY

Stock

8

Min.Order

1

Region

WORLDWIDE Order Now

MOUSER

Stock

10

Min.Order

1

Region

WORLDWIDE Order Now

Farnell Element14

Stock

12

Min.Order

1

Region

EUROPE Order Now

Distributor reported inventory date: 2020-11-25

Supplier

ST

ECCN (US)

EAR99

ECCN (EU)

NEC

Budgetary Price (US$)* / Qty

23.0 / 1

Country of Origin

ITALY

Board production status

-

(*) Suggested Resale Price per unit (USD) for BUDGETARY USE ONLY. For quotes, prices in local currency, please contact your local ST Sales Office  or our Distributors
